Impact Sprinklers Not Rotating? 10 Causes & Fixes (2026)

TL;DR

Impact sprinklers stop rotating when something disrupts their simple mechanical cycle of water hitting a deflector arm, a spring snapping it back, and the head turning incrementally. The most common causes are low water pressure, clogged nozzles, hard water mineral buildup on bearings, and worn springs. Most fixes take minutes with no tools, but if multiple heads fail or the problem keeps returning, it’s time for a professional sprinkler repair.

How Impact Sprinklers Actually Work (and Why They Stop)

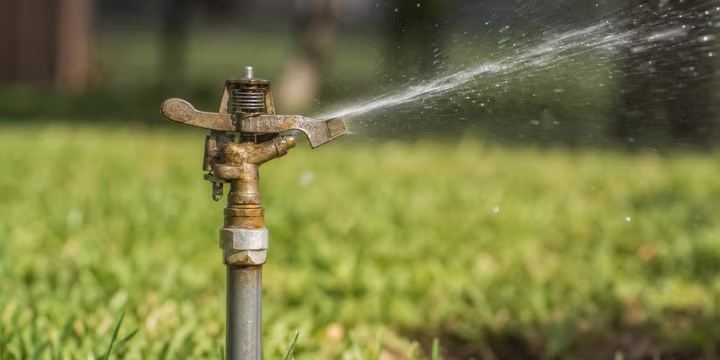

Before diagnosing anything, it helps to understand the mechanism you’re dealing with. Impact sprinklers (sometimes called impulse sprinklers) are the ones that make the distinctive “chk-chk-chk” sound as they water your lawn. That sound is the deflector arm striking a back plate over and over.

Here’s the cycle: water exits the nozzle under pressure, hits a weighted deflector arm, pushes it to the side, and a spring snaps it back into position. Each snap rotates the head a few degrees. Repeat that hundreds of times and the sprinkler completes a full arc or circle.

When any single step in that chain breaks down, whether the water pressure drops, the spring weakens, or the bearing seizes, the whole rotation stops. Your sprinkler just sits there shooting water in one direction while the rest of your yard goes dry.

Impact Sprinklers vs. Gear-Driven Rotors: Know the Difference

Many homeowners confuse impact sprinklers with gear-driven rotors, and the distinction matters because the causes and fixes are completely different. Gear-driven rotors use sealed internal gears to control a smooth, quiet rotation. Impact sprinklers rely on that external spring-loaded arm.

Gear-driven rotors have largely replaced impact heads in modern installations because they rotate smoothly, require less maintenance, and are much smaller. If your sprinkler head is quiet, smooth, and has no visible arm swinging back and forth, you probably have a gear-driven rotor. The troubleshooting steps below won’t apply to your situation. Consider reaching out for a system evaluation and repair instead.

Why Is My Impact Sprinkler Not Turning? 10 Common Causes

Here are the known failure modes, roughly ranked from most common to least common.

Quick Diagnostic Steps You Can Do Right Now

You don’t need tools for most of these. Walk out to the sprinkler that isn’t rotating and work through this checklist:

1. Check whether other heads on the same zone are working. If sprinklers closest to the water source rotate fine but the last ones in the line don’t, you’re running too many heads for your water supply. This is a pressure problem, not a mechanical one. Most impact sprinklers need 30 to 50 PSI to operate correctly and will fail below roughly 25 PSI.

2. Try rotating the head by hand. With the water off, grab the head and turn it. A healthy impact sprinkler should spin freely with almost no resistance, two fingers and barely any effort. If it’s stiff, gritty, or won’t budge, the pivot bearing is compromised.

3. Push the deflector arm and release it. The arm should snap back sharply. If it returns slowly, weakly, or not at all, the spring has lost tension or broken. Practitioners on forum sites like Garage Journal describe this exact symptom: the arm swings back and forth making the normal “machine gun” sound, but the head gets no rotation because the spring can’t generate enough snap-back force.

4. Look for white or chalky deposits. Check around the base of the head, the bearing area, and the nozzle opening. White scale means hard water minerals are building up and increasing friction. This is especially common in West Texas.

5. Inspect the nozzle and PJ tube for blockages. The PJ tube is the small tube mounted on the deflector arm. It’s a favorite nesting spot for insects. A single grain of sand in the nozzle or a small mud dauber nest in the PJ tube can stop rotation entirely. New installations are particularly prone to debris in the lines (sand, pipe tape, plastic shavings).

Hard Water: A Hidden Culprit, Especially in West Texas

This is the cause that most troubleshooting guides skip, and it’s arguably the most relevant one for homeowners in and around Lubbock.

Lubbock’s municipal water measures anywhere from 15 to 22 grains per gallon (GPG), which places it firmly in the “very hard” category. Well water in surrounding areas can reach 35 GPG. For context, water above 10.5 GPG is classified as very hard.

What does this mean for your impact sprinklers? Hard water deposits calcium and magnesite scale on every surface the water touches. Over time, that scale builds up on the bearing nipple washers (the slick surfaces that allow the head to rotate), inside the nozzle, and around the spring. The result is increased friction. Eventually, the water pressure can’t generate enough force to overcome that friction, and the head stops turning.

How to clean mineral buildup: Disassemble the sprinkler head, remove the nozzle, and soak all components in a 50/50 white vinegar and water solution for one to two hours. Scrub stubborn deposits with an old toothbrush, rinse thoroughly, and reassemble.

How often to clean: In areas with moderate water hardness, seasonal cleaning is usually enough. In Lubbock and the surrounding West Texas communities, you may need to clean as often as monthly, or even weekly during heavy-use summer months. If you find yourself cleaning constantly, it’s worth considering a Y-strainer filter ($10 to $25) or a broader scheduled sprinkler system maintenance plan that includes regular head inspections and adjustments.

What NOT to Do

Three rules that manufacturer guidelines and experienced irrigators agree on:

Never use lubricants. This is the most common DIY mistake. Impact sprinkler bearings are designed to be water-lubricated only. Petroleum products (WD-40, silicone spray, grease) will swell and destroy the bearing washers, and the sprinkler will stop rotating permanently.

Never drill out the nozzle. If the nozzle is clogged, remove it and clean it. Drilling changes the orifice size, which wrecks the spray pattern and can cause the head to stall from excessive flow.

Don’t force a stuck bearing. If the head won’t turn by hand, forcing it can crack the riser or damage the fitting below ground. Disassemble, clean, and reassemble. If it’s still seized, replace the head.

When to Replace vs. Repair

The repair-or-replace math is simple for individual impact sprinkler heads. A new brass or plastic impact head costs $10 to $15 at any hardware store. Rebuild kits (springs, washers, nozzles) exist but often cost nearly as much as a complete replacement.

General guidelines:

• Under 10 years old: Clean it, replace worn parts, and put it back in service.

• Over 10 to 15 years old: Full head replacement is almost always the better use of your time and money. One forum user on Garage Journal put it well: they decided to replace a 20-year-old head with a $15 new impact rather than spend $10 on tools to try and repair parts that might fail again.

• Repeated failures across multiple heads: Consider upgrading the entire zone to modern gear-driven rotors, which are quieter, rotate more uniformly, and require significantly less maintenance. If you’re thinking about a system upgrade, that’s a good conversation to have with a professional irrigation design and installation team.

According to Angi, the average sprinkler system repair runs about $257, which typically covers diagnosis plus parts and labor for one or two heads. Full system overhauls obviously cost more.

When to Call a Professional

Some impact sprinkler rotation problems are easy DIY fixes. Others point to system-level issues that need professional diagnosis. Call a licensed irrigator if:

• Multiple heads on the same zone aren’t rotating. This usually indicates a pressure problem upstream, possibly a partially closed valve, a leak in the main line, or a supply issue.

• The same head keeps clogging after cleaning. Recurring debris means something is wrong in the piping, whether it’s a cracked line pulling in soil or deteriorating pipe shedding material internally.

• You suspect an underground pipe break. Soggy spots between heads, unexplained spikes in your water bill, or pressure that dropped suddenly all suggest a line break.

• Your controller or wiring is acting up. Electrical faults in valve wiring or controller programming aren’t sprinkler head problems at all, and misdiagnosis wastes time.

• You want to upgrade from impact heads to gear-driven rotors. This involves nozzle selection, pressure matching, and sometimes re-spacing heads for proper coverage.

The Irrigation Association estimates that roughly half of all residential irrigation systems aren’t operating as efficiently as they should because of mechanical issues. A lot of those inefficiencies start small, a single head that stops rotating, a slow leak, a zone running at the wrong time, and compound into wasted water and dead grass.

If your impact sprinklers aren’t rotating and the DIY steps above haven’t solved it, M&M Sprinklers’ repair team serves Lubbock and surrounding West Texas communities. With licensed irrigators on staff and decades of experience with the region’s hard water challenges, they can diagnose the root cause quickly and get your system back to full coverage.

While a technician is already on-site, it’s also a smart time to handle your annual backflow preventer testing and knock out two compliance and maintenance tasks in one visit.

Preventing Rotation Problems Before They Start

Fixing an impact sprinkler that stopped rotating is straightforward. Preventing it from happening in the first place is even better.

• Seasonal inspections: Turn on each zone at the start of the watering season and watch every head. Catching a sluggish rotation early, before the bearing fully seizes, saves the head.

• Flush lines after any plumbing work. Run each zone for a few minutes with the nozzles removed to clear debris.

• Install a Y-strainer filter on zones with impact heads, especially if you’re on well water or in a hard water area.

• Clean heads on a schedule. In Lubbock’s hard water, waiting until a head stops is waiting too long. A maintenance plan with regular seasonal checkups handles this automatically and catches other issues (leaks, coverage gaps, controller programming) at the same time.

Frequently Asked Questions

Why does my impact sprinkler make noise but not rotate?

The deflector arm is swinging and the spring is snapping, which creates the “chk-chk-chk” sound, but the head itself isn’t turning. This usually means the pivot bearing is seized from mineral buildup or dirt. Less commonly, the spring has lost enough tension that it can’t overcome bearing friction. Try disassembling and cleaning the bearing area first.

Can too much water pressure cause an impact sprinkler to stop rotating?

Yes. Most impact sprinklers have an optimum operating pressure around 50 PSI, and pressures above 80 PSI can cause the head to stall completely or reverse direction erratically. If you suspect high pressure, install a pressure gauge on a hose bib and test. A pressure regulator may be needed.

How do I know if my sprinkler is impact-driven or gear-driven?

Impact sprinklers have a visible arm on top that swings back and forth, producing a loud clicking sound. Gear-driven rotors are enclosed, cylindrical, quiet, and rotate smoothly with no external moving parts. The two types have completely different failure modes and repair approaches.

How often should I clean impact sprinkler heads in hard water areas?

It depends on your water hardness. In areas like Lubbock, where water measures 15 to 22+ grains per gallon, monthly cleaning during the irrigation season is a reasonable starting point. Some homeowners with extremely hard well water find they need to clean weekly. If that frequency feels unsustainable, a filter or professional maintenance plan can reduce the burden.

Is it worth repairing a 15-year-old impact sprinkler head?

Usually not. Replacement heads cost $10 to $15, and rebuild parts cost nearly as much. Forum users consistently recommend replacing rather than repairing older heads. If you’re replacing multiple heads, it’s also worth considering whether modern gear-driven rotors would be a better long-term fit for your system.

Why do only the last sprinklers on the line stop rotating?

Those heads receive the lowest water pressure because friction and distance reduce pressure as water travels through the pipe. If the last heads on a zone are the ones failing, you’re likely running too many heads for your available water supply. Reducing the number of heads per zone or increasing supply pressure solves this.

Can I use WD-40 or silicone spray on a stuck impact sprinkler?

No. Impact sprinkler bearings are engineered to be lubricated by water only. Petroleum-based products and silicone sprays will damage the bearing washers and permanently stop rotation. If the bearing is stuck, disassemble, soak in vinegar solution, clean, and reassemble.

What is the PJ tube and why does it matter?

The PJ tube is a small tube mounted on the deflector arm of an impact sprinkler. It directs a portion of the water flow to help drive the arm mechanism. Insects love building nests inside it because it’s a sheltered, hollow space. A blocked PJ tube reduces the force driving the arm, which can slow or stop rotation entirely. A quick visual inspection and a poke with a thin wire clears most blockages.
