Adding Zones to an Existing Irrigation System—What to Expect

TL;DR

Adding a zone to an existing irrigation system typically costs $250 to $900 per zone, with most residential projects landing between $450 and $650. The process involves assessing your current system’s pressure, flow, controller capacity, and spare wiring before any digging starts. Expect half a day to a full day of work per zone, some temporary yard disruption from trenching, and the possibility of needing a controller upgrade or new wire runs if your original installer didn’t leave spare capacity.

Why Homeowners Add Zones

You built a patio, planted new flower beds, or finally got tired of watching brown patches spread across the side yard every July. These are the moments when adding zones to an existing irrigation system becomes more than a nice idea. It becomes necessary.

The most common triggers are straightforward: new landscaping that the original system never accounted for, coverage gaps that have been annoying you for years, an overloaded zone that drops pressure every time it runs, or a desire to convert spray heads in garden beds to water-saving drip emitters.

Whatever the reason, zone expansion is one of the most practical upgrades you can make to an irrigation system. But the process involves more technical variables than most homeowners expect. This guide walks through every term, every step, every cost factor, and every potential surprise so you know exactly what you’re getting into.

If you’re already weighing costs, our sprinkler repair cost guide covers Lubbock-area pricing context for related work.

Key Terms You’ll Encounter

Before a contractor starts explaining what your system needs, it helps to speak the same language. Here are the terms that come up in virtually every zone addition conversation.

Irrigation Zone

A zone is simply one section of your sprinkler system controlled by a single valve. When that valve opens, every head in that zone runs simultaneously. When it closes, they all stop. Each zone operates independently and can be programmed on its own schedule. The whole point of adding a zone is to give a new area of your yard its own dedicated water supply and programming.

Zone Valve (Solenoid Valve)

This is the electromechanical gate that opens and closes water flow to a specific zone. Every new zone requires its own valve, which gets installed in an underground valve box and connects to the irrigation mainline with a tee fitting and glue. If you ever need to diagnose a valve problem down the road, testing a sprinkler solenoid with a multimeter is the standard approach.

Mainline

The mainline is the primary water supply pipe feeding your entire irrigation system. It runs from your water source (after the backflow preventer) to the valve manifold or valve boxes. All zones branch off the mainline. When adding a zone, the contractor taps into this pipe to connect the new valve.

Lateral Line

The pipe that runs from the zone valve out to the individual sprinkler heads within that zone. Lateral lines are smaller diameter than the mainline and carry water only when their specific zone is active.

Controller (Timer)

The device mounted in your garage or on an exterior wall that tells each zone when to turn on, how long to run, and when to shut off. Here’s the critical question for zone additions: does your existing controller have an open station for the new zone? Some controllers have a fixed number of stations, and if you’re already using all of them, you’ll need an upgrade.

Modular Controller

Many modern controllers are modular, meaning they ship with a base number of stations (usually three or four) and accept add-on modules for more zones. If your controller is modular, expanding capacity might cost as little as a $30 module instead of a full controller replacement. This distinction matters because it can save hundreds of dollars.

Spare Wire

During the original installation, a good installer runs extra conductors in the wire bundle between the controller and the valve boxes. These spare wires make future zone additions simple: just connect the new valve to an unused wire. If your original installer didn’t leave spare wires, the cost goes up significantly because new wire needs to be trenched from the controller to the new valve location, or alternative solutions like Add-A-Zone devices become necessary.

Flow Rate (GPM)

Gallons per minute, the volume of water your supply delivers. Residential irrigation systems typically need 10 to 20 GPM depending on zone size and head count. Each rotor head uses roughly 2 to 4 GPM, and spray heads use about 1 to 2 GPM. Your available flow rate puts a hard ceiling on how many heads a single zone can support.

Static Pressure vs. Operating Pressure (PSI)

Static pressure is what’s in your pipes when no water is flowing. Operating pressure (also called dynamic pressure) is what actually reaches the sprinkler heads when a zone is running. There’s always a gap between the two, and it’s bigger than most people realize. The 5-4-3-2-1 rule of thumb estimates roughly 15 PSI of loss from friction in the meter, backflow preventer, valves, pipe, and fittings before water ever exits a nozzle. For a deeper look at how pressure works in your system, see our water pressure guide.

Head-to-Head Coverage

A design standard where each sprinkler head’s throw radius reaches the adjacent head. This eliminates dry gaps between heads and ensures uniform watering across the zone. Any new zone should be designed with head-to-head coverage as a baseline requirement.

Hydrozoning

Grouping plants with similar water needs into dedicated zones. Your front lawn bermuda, backyard flower beds, and foundation shrubs all need different amounts of water. Hydrozoning lets you program each zone independently so nothing gets overwatered or underwatered. It’s one of the best reasons to add zones to an existing system, especially in West Texas where every gallon counts.

Backflow Preventer

A mechanical device that keeps irrigation water from flowing backward into your drinking water supply. Lubbock municipal code requires backflow devices on irrigation systems. Adding zones may trigger an inspection requirement or reveal that your existing backflow preventer needs repair or replacement. Our backflow preventer repair guide explains the costs and compliance details.

Trenching

Digging channels to lay new pipe. Standard depth is 8 to 12 inches. This is the most visually disruptive part of the process and the primary reason your yard will look rough for a few weeks after installation. Trenching costs typically run $4 to $12 per linear foot, averaging around $800 per 100 feet.

Drip Zone

A zone dedicated to low-volume drip emitters instead of spray heads. Drip zones are ideal for flower beds, vegetable gardens, and foundation plantings. They use 30 to 50% less water than traditional spray systems, making them a smart investment in dry climates. If you’re considering this route, our guide to adding drip irrigation covers the specifics.

Add-A-Zone Device

A specialty product that allows two valves to share a single pair of field wires. If your system has no spare wires and you want to avoid trenching a new wire run all the way back to the controller, an Add-A-Zone device is the workaround. It independently controls two zone valves from one wire pair, saving significant labor and trenching costs.

Cycle and Soak

A programming technique that breaks a zone’s watering time into shorter cycles separated by pauses (“soaks”). Instead of running a zone for 20 straight minutes, you might program three 7-minute cycles with 15-minute breaks between them. This prevents runoff, which is especially important on West Texas clay and caliche soils where water absorption is slow.

Pressure-Regulated Heads

Spray bodies with built-in pressure regulators that maintain consistent output regardless of variations in supply pressure. These are worth specifying for new zones because they keep every head performing evenly, even if the zone’s pipe runs are long or the supply pressure fluctuates throughout the day.

The Zone Addition Process, Step by Step

When you hire a contractor for adding zones to an existing irrigation system, here’s what to expect at each stage. The entire process typically takes half a day to a full day for a single zone.

Step 1: System Assessment

Before anything gets dug up, a contractor should evaluate your existing system. This means checking available GPM and PSI at the point of connection, verifying whether your controller has open stations, counting spare wires in the wire bundle, locating mainline routing and valve box positions, and confirming that your backflow preventer is compliant and in good condition.

This step is where most surprises surface. Practitioners on Reddit’s r/Irrigation forum consistently emphasize that skipping the assessment is the fastest way to create a system-wide pressure problem. One contractor in that community described it simply: figure out the flow budget first, or the new zone will steal pressure from every existing zone.

Step 2: Design the New Zone

Based on the assessment, the contractor plans the head layout, pipe routing, and nozzle selection for the new zone. The design must stay within the property’s available flow budget. Each new zone gets sized so its total GPM demand doesn’t exceed what the supply can deliver after accounting for friction losses.

This is also where hydrozoning decisions happen. If you’re adding coverage for a mix of turf and beds, those should be separate zones with different head types and run times.

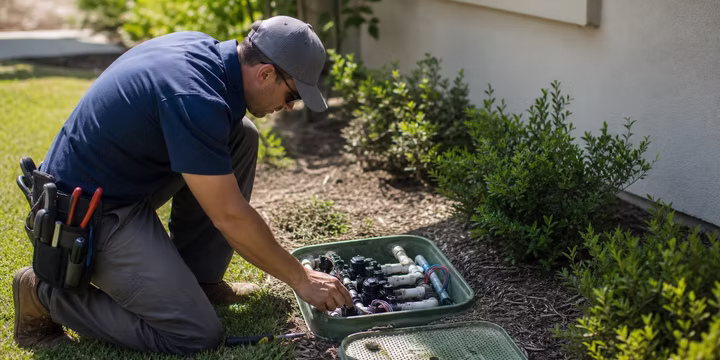

Step 3: Install the Valve and Connect to the Mainline

The contractor finds the mainline and taps into it with a tee fitting to install the new zone valve. The valve gets placed in or near an existing valve box (or a new box is set if the location is distant from the current manifold). The valve connects to the controller via the spare wire or through an Add-A-Zone device.

Step 4: Trenching and Pipe Laying

New lateral pipe is trenched from the valve to each head location. This is the most disruptive phase. Your yard will have open trenches, dirt piles, and foot traffic from the crew. Standard residential trench depth is 8 to 12 inches. The trenches get backfilled the same day, but the disturbed turf will need time (and possibly reseeding or sodding) to recover.

Tree roots and underground utilities can complicate this step significantly. If your zone addition runs near mature trees, root interference is a real concern. Trenching through root zones can damage the tree and crush pipes over time.

Step 5: Install Heads and Connect Wiring

Sprinkler heads are set at grade (flush with the soil surface when retracted), the wiring is connected and waterproofed at each splice, and the new station is programmed into the controller. Head spacing follows the head-to-head coverage standard.

Step 6: Test and Adjust

Every head is checked for coverage, pressure, and arc. The contractor runs the full system to confirm the new zone doesn’t rob pressure from existing zones. Nozzle arcs and radii get fine-tuned to avoid overspray onto hardscapes or underspray into dry corners.

Can Your System Handle a New Zone?

This is the question that separates a smooth project from a frustrating one. Before committing to a zone addition, run through this checklist.

Controller capacity. Count the stations on your controller and count how many are currently wired to active zones. If there are no open stations, you’ll need a module upgrade (if modular) or a full controller replacement. If your system needs a controller upgrade and you’ve been considering Wi-Fi capability, bundling the upgrade with the zone addition is cost-efficient.

Spare wires. Open the controller and look at the wire bundle. Are there unused conductors? If the original installer left spare wires, connecting the new zone is straightforward. If not, you’re looking at either a new wire trench back to the controller or an Add-A-Zone device, both of which add cost.

Flow rate (GPM). Measure your available GPM at the point of connection. The simplest method: time how long it takes to fill a 5-gallon bucket from an outdoor spigot with no other water running, then calculate. If your supply is 10 GPM and your largest existing zone already uses 9 GPM, you can’t just add more heads to that zone. You need a separate zone that runs at a different time.

Water pressure (PSI). Measure static pressure with a gauge at the hose bib. Then subtract at least 15 PSI for system friction losses (the 5-4-3-2-1 rule). What’s left is your real working pressure. If that number is below 30 PSI, adding zones may require pressure-regulated heads or other design adjustments. For a full diagnostic approach, see our low water pressure fixes guide.

Backflow preventer. Is your current device compliant with local code? Is it in good working condition? Adding zones to an existing irrigation system sometimes triggers a city inspection, and a failing backflow preventer will halt the project until it’s repaired or replaced.

Existing system health. There’s no point expanding a system that has underground leaks or broken valves. Fix current problems first, then add capacity.

How Much Does It Cost to Add a Zone?

Cost is the number one question homeowners have when researching zone additions, and the range is wide because of how many variables are involved.

Adding zones to an existing system costs less per zone than building from scratch, and bulk discounts often apply when installing five or more zones simultaneously. Practitioners on Reddit’s irrigation community report that the $500 to $1,000 per zone range is the most realistic for standard residential work, with the lower end reflecting simple tap-and-run jobs and the upper end reflecting complex routing.

What Drives the Cost Up

No spare wires. If your system lacks functioning spare wires, the contractor must either trench a new wire run from the controller to the new valve or install an Add-A-Zone device. Either option adds meaningful cost.

Controller replacement. If your controller has no spare stations and isn’t modular, you’ll need a new one. A basic replacement runs $100 to $300 for the unit alone. A smart Wi-Fi controller costs more but adds weather-based scheduling and remote management.

Difficult soil. In Lubbock and across West Texas, caliche (a calcium carbonate hardpan layer) can make trenching dramatically harder than in soft loam. Expect higher labor charges when the ground fights back.

Tree roots and underground obstacles. Existing elements underground that make trenching more difficult will increase installation costs. Roots, old utility lines, and rock layers all add time.

Long pipe runs. The farther the new zone is from the mainline and controller, the more pipe, wire, and trenching the job requires.

Post-installation lawn repair. Trenching and foot traffic will damage turf. Patching with sod in large bare areas typically costs $1 to $2 per square foot.

Common Pitfalls When Adding Zones

Exceeding Your Flow Budget

This is the most common technical failure. Too many heads on a zone (or too many zones running simultaneously) drops pressure across the entire system. As one irrigation contractor put it: the pressure drops too much, the water doesn’t go the distance it needs to, and you end up standing outside all summer with a hose watering brown spots. Before adding anything, verify that the new zone’s total GPM demand fits within your supply capacity.

To illustrate: at 35 PSI, a Rain Bird 5000 Series rotor using a 3.0 nozzle draws about 3.11 GPM. If your home’s water capacity is 10 GPM, you can place only three of those heads on one zone before exceeding capacity.

Mixing Head Types on One Zone

Rotors and spray heads have vastly different precipitation rates. Putting both on the same zone means either the rotor areas get underwatered or the spray areas get flooded. Even with matched precipitation rate nozzles, mixing full-circle and part-circle nozzles on one zone creates uneven coverage that’s difficult to fix with programming alone. For more on choosing the right heads, see our irrigation head types guide.

Ignoring Pressure Uniformity

Pressure within a single zone shouldn’t vary more than 10% from the first head to the last. If pipe is undersized or lateral runs are too long, the heads at the end of the line will underperform while the heads closest to the valve blast water at full force. Pressure-regulated heads help, but proper pipe sizing is the real fix.

Skipping the Backflow Inspection

Lubbock’s eCode360 requires backflow prevention devices on irrigation systems. Adding zones to an existing irrigation system can trigger the city’s attention, and you don’t want to be caught with a non-compliant or failing device. Get it tested before or during the zone addition.

Not Accounting for Tree Roots

If your system has been in place for a long time, tree roots may have grown around or even crushed existing pipes. When trenching new lateral lines near mature trees, root interference is almost guaranteed on older properties. Cutting through major roots damages the tree and creates ongoing maintenance problems. Planning trench routes that avoid root zones takes more time upfront but prevents expensive complications later.

Municipal Water Competition

In Lubbock during summer months, the whole neighborhood may be pulling water from one main simultaneously. This drives down the pressure available to your system. If your new zone was designed with marginal pressure in mind, it may underperform during peak watering hours. The fix is simple: water in the early morning (before 6 AM) or on off-days, if local restrictions permit it.

West Texas Considerations

Adding zones in Lubbock and the surrounding area comes with region-specific factors that don’t apply everywhere.

Caliche soil is the big one. This hard, calcium-rich layer sits anywhere from a few inches to a couple of feet below the surface across much of West Texas. It makes trenching slower and harder, which directly increases labor costs. Some contractors need specialized equipment to cut through it efficiently.

Water restrictions in Lubbock typically limit irrigation to a two-day-per-week schedule during summer. This makes zone efficiency more critical than in wetter climates. Every zone needs to deliver the right amount of water in fewer opportunities, which means precise design, proper hydrozoning, and cycle-and-soak programming are not optional luxuries but practical necessities.

Extreme summer heat accelerates evaporation and plant stress. Zones that were “good enough” at 85 degrees may fall short at 105 degrees. Expanding your system before summer hits is better than trying to get on a contractor’s schedule in July when everyone else in town has the same idea.

For a broader perspective on why zoned irrigation pays for itself in this climate, see our guide to the benefits of irrigation in West Texas.

Drip Zone vs. Spray Zone: Which Should You Add?

Not every new zone needs spray heads. If you’re expanding coverage into flower beds, vegetable gardens, or foundation plantings, a drip zone is usually the better choice.

Drip zones use 30 to 50% less water than spray zones, virtually eliminating overspray and runoff. They deliver water directly to the root zone, which is especially valuable for beds with mulch where spray heads would just wet the surface. A bare-bones drip zone added to an existing system can cost as little as $225 to $300, though more complex installations with varied plantings run $650 to $900.

Spray and rotor zones remain the right choice for turf areas where you need broad, even coverage across open lawn. The key principle: never put drip and spray on the same zone. Their flow rates and run time requirements are completely different. For a detailed comparison, our drip irrigation vs. sprinkler guide breaks down the pros and cons.

When to Call a Professional

Some zone additions are genuinely DIY-friendly. If your controller has an open station, spare wires are available, pressure is adequate, and the new zone is small and close to the existing valve box, a handy homeowner can handle it with basic tools and PVC skills.

But the majority of zone additions involve at least one complication that makes professional help worth the cost. Here’s when to call someone:

You’re unsure about your flow budget. Miscalculating GPM or PSI leads to system-wide performance problems that are expensive to diagnose and fix after the fact.

There are no spare wires. Running new wire, installing Add-A-Zone devices, or adding wireless decoders requires experience to do reliably.

Multiple zones are needed. Two or three new zones involve mainline connections, manifold work, and design calculations that compound in complexity.

Backflow compliance is uncertain. In Texas, backflow preventer testing requires a licensed BPAT tester. An irrigation company with in-house BPAT certification can test, repair, and certify without subcontracting, saving you time and coordination headaches.

Tree roots are in the trenching path. Coordinating pipe routing around root zones without damaging mature trees takes expertise that goes beyond irrigation knowledge.

You want it done right the first time. Irrigation contractors typically charge between $50 and $100 per hour. For a job that takes half a day, the labor cost is modest compared to the value of a properly designed, properly pressured zone that works reliably for years.

What to Expect After Installation

Your yard will look rough for a few weeks. Trenches are backfilled the same day, but the disturbed soil settles over time and the turf needs to regrow or be replaced. In Lubbock’s heat, sodded patches need consistent watering to establish. Seeded areas take longer.

Expect to run the new zone daily for the first week or two (especially if sod was laid over the trench lines), then transition to your normal schedule. Check head coverage after the first few waterings, as settled soil can shift heads slightly out of alignment.

Monitor your water bill for the first full billing cycle after installation. A properly designed zone addition should not dramatically increase water usage because the new zone replaces hand-watering or fills gaps that were going dry anyway. If the bill spikes unexpectedly, that could indicate a leak in the new connections that needs attention.

FAQ

How long does it take to add a zone to an existing irrigation system?

Most single-zone additions take half a day to a full day, assuming no major complications like rock, caliche, or long wire runs. Adding two or three zones at once might stretch into a day and a half.

Will adding a zone lower pressure on my other zones?

Not if the system is designed correctly. A new zone runs on its own valve, so it operates at a different time than your existing zones. The only scenario where pressure drops across the board is if two zones accidentally run simultaneously or if the mainline is undersized for the total demand.

Do I need a new controller to add a zone?

Not necessarily. If your controller has an unused station, the new zone simply gets wired to that open slot. If the controller is modular, adding a station module is inexpensive. Only when all stations are full on a non-modular controller do you need a complete replacement.

Does adding zones to an existing irrigation system require a permit in Lubbock?

Lubbock’s municipal code addresses irrigation systems and backflow prevention. Whether a permit is required depends on the scope of the work. Contact the City of Lubbock’s development services or your irrigation contractor to confirm requirements before work begins.

Can I add a drip zone to my spray-head sprinkler system?

Yes. Drip zones connect to the same mainline and controller as spray zones. They just use a different valve assembly (with a pressure regulator and filter) and emitter-style distribution instead of pop-up heads. The key rule is keeping drip and spray on separate zones because their run times and flow rates are incompatible.

What if my system doesn’t have spare wires?

You have three main options: trench a new wire run from the controller to the new valve location, install an Add-A-Zone device that lets two valves share one wire pair, or use a wireless valve decoder. Each has cost and reliability trade-offs, and a contractor can recommend the best fit for your situation.

How do I know if my water pressure is enough for another zone?

Measure your static pressure with a gauge at an outdoor hose bib (with no water running inside or outside). Subtract at least 15 PSI for system friction losses. If the remaining pressure is above 30 PSI and your GPM supports the planned head count, you’re likely in good shape. If you’re borderline, pressure-regulated heads and efficient nozzle selection can help.

What’s the best time of year to add zones in West Texas?

Spring (March through May) and fall (September through October) are ideal. The ground is workable, temperatures are moderate enough for turf recovery, and you beat the summer rush when contractor schedules fill up fast. Adding zones before Lubbock’s watering restrictions tighten in summer means your new landscaping gets established when it needs the most water.
