Gear Driven Rotor Coverage Problems: 9 Fixes for 2026

TL;DR

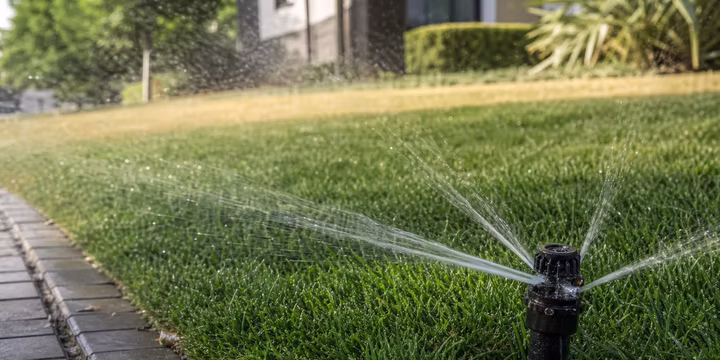

Gear driven rotor coverage problems show up as dry spots, brown arcs, or soggy patches on your lawn. The nine most common causes are clogged filters, arc misalignment, radius screw misuse, wide spacing, low pressure, mixed head types, mismatched nozzles, tilted heads, and wind disruption. Most of these problems cannot be fixed by simply running your sprinklers longer. You need to identify the specific cause and address it mechanically or redesign the zone.

What Is a Gear-Driven Rotor?

A gear-driven rotor is a type of irrigation sprinkler that distributes water through a single rotating stream rather than a fixed spray pattern. Water enters the base of the sprinkler, passes through a filter screen, and hits a small turbine. That turbine spins a set of internal gears, which rotate the nozzle slowly back and forth across an adjustable arc (typically 40° to 360°). The water then exits through the nozzle as a concentrated stream that can throw 15 to 50+ feet depending on model and pressure.

Compared to fixed spray heads (which work like a showerhead and cover small areas), gear-driven rotors are quieter, cover more ground per head, and apply water at a slower rate. Compared to old-style impact rotors (the “ch-ch-ch” sprinklers), gear-driven models are smaller, smoother in rotation, and lower maintenance because the gear train is sealed inside the housing.

For a broader explanation of the full irrigation system these rotors connect to, see this guide on how a sprinkler system works.

That sealed gear train matters for troubleshooting. You can’t open the mechanism and clean individual gears. If the internal drive fails, you replace the entire rotor. But most gear driven rotor coverage problems aren’t caused by gear failure. They’re caused by nine specific, identifiable issues.

How Rotor Coverage Is Supposed to Work

Before diagnosing problems, you need to understand what correct coverage looks like. Two principles govern everything.

Head-to-head coverage. Each rotor should throw water all the way to its nearest neighbor. If a rotor throws 30 feet, the next head should be about 30 feet away, which equals the radius of throw (or roughly 50% of the sprinkler’s total diameter of coverage). This means every point on your lawn gets watered by at least two heads. The overlap is not wasted water. It’s the only way sprinklers achieve uniform distribution, because a rotor puts down the most water in the middle band of its pattern and the least at the outer edge.

Matched precipitation rates. A rotor set to a 90° arc covers one-quarter the area of a rotor set to 360°. If both use the same nozzle flowing the same gallons per minute, the quarter-circle head applies four times more water per square foot. To equalize this, you install smaller nozzles on narrower arcs. The industry formula is simple: GPM × 96.3 ÷ area in square feet = precipitation rate in inches per hour.

When either principle is violated, you get coverage problems that no amount of extra runtime can fix.

The Nine Gear Driven Rotor Coverage Problems

1. Clogged Filter Screen or Rotor Not Rotating

What you see: A head that pops up but doesn’t turn, or turns intermittently. The stream may be weak or shortened compared to neighboring heads. Dry spots appear in the area that head is supposed to cover.

What’s happening: Every gear-driven rotor has a small filter screen at the base that catches sediment before water reaches the turbine. When that screen clogs, water flow drops. The turbine can’t generate enough force to turn the gears, so the head stalls or barely creeps through its arc. In West Texas, where municipal water carries mineral sediment and hard water deposits build up quickly, clogged filters are especially common.

The fix: Pull the rotor’s internal assembly out of the body, remove the filter screen, rinse it clean, and reinstall. If cleaning doesn’t restore full rotation, the gear train itself has likely failed. Hunter’s official guidance is clear: the gear mechanism is sealed and not field-serviceable. Replace the rotor.

Practitioners on The Lawn Forum confirm this tradeoff is real. As one experienced irrigator put it, “I’m all for being resourceful but by the time I dig one up, I’m going to just replace it.” For a deeper walkthrough, see our guide on fixing a rotor that won’t turn.

2. Arc Adjustment Errors

What you see: Water spraying onto sidewalks, driveways, or the neighbor’s fence on one side while leaving a dry stripe on the lawn on the other. Or the rotor overshoots its intended area in one direction and undershoots in the other.

What’s happening: The arc (the sweep angle of the rotor) is set wrong. Every gear-driven rotor has adjustable left and right “stops” that define where the stream reverses direction. If someone bumped the head, replaced it without resetting the arc, or never set it correctly after installation, the pattern won’t align with your landscape.

Industry sources call this the single biggest problem with gear-drive rotors. And it’s a patience problem as much as a skill problem. Setting the arc is a slow process of repeated screwdriver adjustments and checking the result each time, because you can’t see where the stream lands while you’re adjusting the screw at ground level.

The fix: Use a flat-blade screwdriver (or the proprietary key for your brand) to set the fixed left stop first, then adjust the arc width. Run the zone and watch the full rotation. Repeat until the pattern matches your coverage area. Budget 10 to 15 minutes per head.

3. Radius Reduction Screw Misuse

What you see: Uneven water distribution within a single head’s coverage area. The zone near the rotor is soaked. The far edge is dry. The overall throw distance is noticeably shorter than it should be for the installed nozzle.

What’s happening: Most gear-driven rotors have a small screw on top of the nozzle turret that reduces throw distance. When you turn it clockwise, the screw tip drops into the water stream and deflects it. This shortens the radius but does not reduce the gallons per minute flowing through the nozzle. All that water that used to reach the far edge now dumps closer to the head, destroying uniformity.

You can reduce spray distance by up to 25% without significant performance loss. Beyond that threshold, distribution falls apart. Practitioners on The Lawn Forum put it bluntly: “They are designed to work with no distance reduction. You will likely get the best uniformity without using the radius reduction screw.”

The fix: If you need a shorter radius, don’t crank the screw down. Instead, swap to a smaller nozzle that’s designed for that shorter throw distance. This keeps the precipitation rate correct and maintains stream integrity. See our step-by-step guide on replacing a sprinkler nozzle for the process.

4. Head-to-Head Spacing Failures

What you see: A doughnut pattern in the turf. There’s a green ring a few feet out from each head, then brown or thin grass between heads. Sometimes the dry areas form a consistent grid pattern across the entire zone.

What’s happening: The heads are spaced too far apart. Each rotor’s spray pattern is strongest in the middle band and weakest at the outer edge. When heads are close enough for their patterns to overlap, the weak outer edges stack on top of each other and create uniform coverage. When they’re too far apart, those weak edges don’t overlap, and you get chronic dry spots that no scheduling change can fix.

Spacing heads too far apart is the number one design error in residential irrigation. It usually happens when someone tries to save money by using fewer heads. The rule of thumb: head-to-head spacing means the distance between heads should equal the radius of their throw. A rotor throwing 30 feet should have its nearest neighbor about 30 feet away.

The fix: This is a design problem, not an adjustment problem. You either need to add heads to the zone or swap to larger nozzles that throw farther (if pressure supports it). There’s no screwdriver fix for inadequate spacing.

If your system has broader issues beyond just coverage, it might be time for a full system checkup to evaluate all zones at once.

5. Low or Inconsistent Water Pressure

What you see: Rotors that barely turn, streams that fall short, or heads at the far end of a zone that perform worse than heads near the valve. You might also see the doughnut pattern described above, because reduced pressure shrinks the throw radius and creates spacing gaps that didn’t exist at design pressure.

What’s happening: Gear-driven rotors generally need 25 to 65 PSI depending on model, with best performance near their design pressure (45 PSI for a Rain Bird 5000 PRS, for example). Below that, the turbine slows, the stream shortens, and coverage degrades. Most spray nozzles are designed for 30 PSI; most rotors need 45 PSI.

Quick field test: If you can easily push a running rotor head back down into its body with your hand, the operating pressure is below 20 PSI. That’s a serious deficit.

Low pressure can come from municipal supply issues, too many heads on one zone, a partially closed valve, or a leak somewhere in the system. For zone-by-zone diagnosis, see our guide on troubleshooting low water pressure. If you suspect a hidden leak is stealing pressure, finding a leak in your sprinkler system covers the detection process.

6. Mixed Head Types on the Same Zone

What you see: Part of a zone is always soggy while another part is always dry, and adjusting runtime in either direction makes one area worse.

What’s happening: Someone added spray heads to a rotor zone (or vice versa), and the two types apply water at completely different rates. A fixed spray head puts down water roughly three to four times faster than a rotor. If a zone runs 30 minutes, the spray heads might apply 1.5 inches while the rotors apply 0.4 inches. This zone is unfixable by scheduling. There is no runtime that satisfies both head types simultaneously.

The fix: Separate them onto different zones with their own valve and runtime. If that’s not practical, swap one type so the entire zone uses matching heads.

7. Mismatched Nozzles and Precipitation Rates

What you see: Some areas of the same zone are consistently wetter than others, even though every head appears to be working and rotating correctly.

What’s happening: The nozzles aren’t matched to each rotor’s arc. A rotor set at 180° covers half the area of a 360° rotor. If both use the same nozzle, the half-circle head applies twice the water per square foot. A 90° head applies four times as much water per square foot as a full-circle head using the same nozzle.

The fix: Match nozzle flow rates to arcs. The principle: a 90° rotor should flow roughly one-quarter the GPM of a 360° rotor covering the same radius. For example, 2 GPM at 90°, 4 GPM at 180°, and 8 GPM at 360°. Most manufacturers publish nozzle charts for exactly this purpose. Whenever someone adjusts a rotor’s arc, they should also check whether the nozzle needs to change.

8. Tilted, Sunken, or Obstructed Heads

What you see: Green doughnuts around certain heads with brown grass beyond them. Or a wedge-shaped dry area on one side of a head where something is blocking the stream.

What’s happening: A rotor that has settled, been hit by a mower, or been buried by landscaping won’t distribute water uniformly. Even a slight tilt changes the throw distance dramatically on one side versus the other. Colorado State Extension identifies sunken and crooked heads as a top cause of coverage failure, noting that “crooked heads will never distribute water uniformly.”

Overgrown grass or shrubs at the base of a head can also block the stream at certain points in the rotation, creating a dead zone in the pattern.

The fix: Straighten tilted heads using a swing joint or cutoff riser. Raise sunken heads with a riser extension. Trim vegetation away from the head. These are simple physical corrections that produce immediate results.

9. Wind Disruption

What you see: Coverage that seems fine on calm mornings but leaves dry patches when you water during windy conditions. Patterns shift day to day.

What’s happening: Wind blows the water stream off target. This is a problem everywhere, but it’s a defining factor in West Texas. Lubbock averages 12+ mph sustained wind, and gusts regularly exceed 20 mph. At those speeds, a rotor’s stream can drift several feet from its intended landing zone. Most generic irrigation guides barely mention wind. In Lubbock, it’s one of the primary causes of gear driven rotor coverage problems.

The fix: Water during the lowest-wind hours (typically early morning before 10 AM, which also aligns with Lubbock’s watering ordinance schedule). For areas with consistently heavy wind exposure, tighten head spacing by 10 to 15% beyond the standard recommendation. In extreme cases, consider switching to drip irrigation for wind-exposed beds, since drip applies water at the soil surface where wind can’t affect it.

How to Diagnose Gear Driven Rotor Coverage Problems

You know something’s wrong. Now you need to figure out which of the nine problems is causing it. Three field tests will narrow it down.

The Visual Symptom Map

Before touching anything, look at the pattern of damage on your lawn:

• Doughnut pattern (green ring around each head, brown between heads): Spacing too wide, low pressure, or sunken heads. All three shrink the effective throw radius.

• Stripe or wedge of brown grass: Arc misalignment. The rotor’s sweep doesn’t cover that section.

• Half the zone soggy, half dry: Mixed head types, or mismatched precipitation rates from wrong nozzles.

• Uniform but weak coverage everywhere: Low system pressure across the zone, or clogged filters reducing flow on multiple heads.

The Push-Down Test

While a zone is running, try pushing a rotor back into its body with your hand. If it goes down easily, operating pressure is below 20 PSI. That’s well below the 45 PSI most rotors need for full performance.

The Catch-Can Test

Place identical containers (tuna cans work well) in a grid across the zone. Run the zone for 15 to 20 minutes. Measure the water depth in each can. Take the lowest 25% of readings, average them, and divide by the overall average. That ratio is your distribution uniformity (DU).

Research shows that rotors in decent shape achieve a DU around 0.70. A peer-reviewed study found that the Rain Bird 5000Plus achieved a DUlq of 0.74 under controlled conditions. The average residential system, though, scores only 0.45. Below 0.50, you have a system where you’d need to massively overwater most of the lawn just to keep the driest spots alive. No controller programming fixes that.

The Biggest Homeowner Mistake

It deserves its own section because it’s so common: you cannot fix coverage problems by adding more runtime. Running your sprinklers longer applies more water everywhere, but the ratio between wet spots and dry spots stays exactly the same. If one area gets twice as much water as another, doubling the runtime just means it gets twice as much of twice as much. You end up with flooding in the heavy zones and still-struggling turf in the weak zones.

Coverage problems are mechanical or design problems. They require mechanical or design solutions: adjusting arcs, swapping nozzles, fixing pressure, adding heads, or separating zones.

If recurring coverage issues keep showing up season after season, a structured maintenance plan catches these problems before they turn your lawn brown.

When to Call a Professional

Some gear driven rotor coverage problems are straightforward DIY fixes. Cleaning a filter, adjusting an arc, or trimming grass away from a head takes basic tools and 15 minutes. Others require professional help:

• The gear train has failed. If cleaning the filter doesn’t restore rotation, the sealed mechanism is done. A pro can replace the head and verify the new one matches the zone’s nozzle and spacing requirements.

• System-wide pressure drops. When multiple zones show low pressure, the cause could be a mainline leak, a failing pressure regulator, or a municipal supply change. Diagnosing this requires pressure gauges at multiple points.

• Spacing redesign. Adding heads means tapping into existing pipe, matching flow rates, and recalculating zone capacity. Getting this wrong creates new problems.

• Recurring filter clogs from hard water. In West Texas, calcium and sediment buildup can clog filters every few weeks. A professional can evaluate whether inline filtration, pressure regulation, or a system flush schedule will solve the root cause.

• Zone separation for mixed head types. This involves adding a new valve, running wire to the controller, and potentially adding a new zone if the controller has capacity.

The average sprinkler system repair costs around $257 according to Angi, but catching a coverage problem early prevents the water waste and lawn damage that makes the eventual repair far more expensive.

For Lubbock and West Texas homeowners, scheduling a system checkup is the fastest way to get a professional diagnosis of every zone at once.

Frequently Asked Questions

Why does my gear-driven rotor leave a dry ring at the outer edge of its pattern?

This is normal sprinkler physics. Rotors apply the most water in the middle band of their pattern and taper off at the edges. That’s why head-to-head spacing is essential. The weak edge of one head overlaps with the weak edge of its neighbor, creating even coverage. If you see a dry ring, your heads are probably spaced too far apart.

Can I fix uneven coverage by running my sprinklers longer?

No. Longer runtimes apply more water proportionally everywhere. The ratio between wet and dry spots stays the same. You’ll flood the overwatered areas before the dry spots get enough. Coverage problems require physical fixes, not schedule changes.

How do I know if my rotor’s filter screen is clogged?

Watch for reduced throw distance, a weak stream, or a head that stalls mid-rotation. Pull the rotor internals out of the body and inspect the screen at the base. If it’s coated in sediment or mineral scale, clean it. If cleaning doesn’t restore performance, the gear train has likely failed and the head needs replacement.

What pressure do gear-driven rotors need?

Most models perform best at around 45 PSI, with a working range of 25 to 65 PSI depending on the specific rotor. Below 25 PSI, most gear-driven rotors will stall or severely underperform. The quick field test: if you can push a running head back into its body by hand, pressure is below 20 PSI.

Should I use the radius reduction screw to shorten my rotor’s throw?

Only if you need a small reduction, no more than 25% of the rated throw distance. Beyond that, the screw breaks up the stream and destroys distribution uniformity while the GPM stays the same. The better approach is to install a smaller nozzle rated for the actual throw distance you need.

Why are some areas of my lawn flooded while others are dry on the same zone?

Three likely causes: mixed head types (spray heads and rotors on the same zone), mismatched nozzles that don’t account for different arc settings, or a combination of both. Check whether all heads on the zone are the same type and whether nozzle sizes match each head’s arc.

How does West Texas wind affect rotor coverage?

Lubbock’s average sustained winds exceed 12 mph, which is enough to push a rotor’s stream several feet off target. Water during early morning hours when wind is calmest. For areas with chronic wind exposure, tighten head spacing by 10 to 15% or consider drip irrigation for beds where rotors consistently miss.

What is a good distribution uniformity score for my system?

A DU of 0.70 or above indicates a well-performing rotor zone. The average residential system scores only about 0.45. Anything below 0.50 means the system wastes significant water trying to keep the driest spots alive. A catch-can test with identical containers across the zone will give you this number in about 20 minutes.
