Replacing Sprinkler Nozzle: 7 Steps & Pro Tips (2026)

TLDR

Replacing a sprinkler nozzle takes about 3 to 5 minutes per head: pull up the stem, unscrew the old nozzle, flush the line, install a new nozzle with its filter screen, then aim and adjust. The catch is that a nozzle swap changes your zone’s hydraulics, so you need to match precipitation rates across every head on that valve and adjust your controller run times accordingly. If you’re in West Texas, multi-stream rotary nozzles resist wind drift far better than standard fine sprays, making them a smart upgrade for open, windy yards.

What “Replacing a Sprinkler Nozzle” Actually Means

A sprinkler nozzle is the removable tip on a sprinkler head that shapes the water into a specific pattern. It controls four things: arc (the angle of coverage), radius (how far water throws), gallons per minute (GPM), and precipitation rate (inches of water applied per hour). On pop-up spray heads, the nozzle threads onto the top of the riser stem, and a small filter screen sits just beneath it. On gear-driven rotors, “nozzles” are small inserts that press into the rotor’s turret. Hunter’s nozzle installation guide covers the basic anatomy.

When people talk about replacing a sprinkler nozzle, they mean removing the old nozzle and its filter screen, flushing any debris from the line, and installing a new nozzle (and filter) that matches the zone’s design requirements for arc, radius, and precipitation rate.

This sounds simple. And mechanically, it is. But a nozzle replacement is a hydraulic change. Install the wrong nozzle family, skip the filter, or forget to reprogram your controller, and you trade one coverage problem for another.

Quick ID: Spray Nozzles vs. Rotary Nozzles vs. Rotor Nozzles

Before you buy a replacement, identify what you have. These three nozzle families are not interchangeable.

Spray nozzles sit on pop-up spray bodies (like the Rain Bird 1800 or Hunter Pro-Spray). They produce a fixed fan of water, and common types include fixed-arc MPR nozzles, variable-arc VAN nozzles, and high-efficiency HE-VAN nozzles. If your head pops up and sprays a steady sheet of water in a half-circle or quarter-circle pattern, it’s a spray nozzle.

Rotary nozzles (like the Hunter MP Rotator or Rain Bird R-VAN) also mount on spray bodies, but instead of a fixed fan, they throw multiple rotating streams. They apply water much more slowly, which means less runoff on slopes and clay soils and better resistance to wind. They look different from sprays in action because you can see the individual streams spinning.

Rotor nozzles are inserts for gear-driven rotors (Hunter PGP, Rain Bird 5000, etc.). These are proprietary. A Hunter rotor nozzle will not fit a Rain Bird rotor, and neither will fit on a spray body. If your sprinkler head rotates back and forth throwing a single powerful stream, it’s a rotor, and you need the brand-specific nozzle tree to replace its insert. Sprinkler Warehouse has a walkthrough for Hunter PGP nozzle changes.

For a broader look at different head types and where each one fits, see our guide to irrigation head types.

Before You Start: Pressure, Precipitation, and Wind

These three factors determine whether your new nozzle actually works. Skipping any of them leads to dry spots, runoff, or wasted water.

Pressure at the Head

Every nozzle family has an optimal operating pressure. When pressure is too high, spray nozzles produce a fine mist that drifts on any breeze. According to the EPA’s WaterSense program, spray bodies with integrated pressure regulation (PRS) can save approximately 5,600 gallons per year for a household with system pressure at or above 60 PSI, primarily by eliminating that misting problem.

The practical takeaway: if you’re replacing nozzles and your system pressure runs high (common in newer Lubbock subdivisions), consider swapping the spray body to a pressure-regulated version at the same time.

Practitioners on Reddit’s r/Irrigation forum consistently report that MP Rotators underperform at 30 PSI and really need 40 PSI at the head to produce full radius and even streams. If you don’t know your head pressure, a $15 pitot tube gauge on the nozzle will tell you.

Precipitation Rate

Precipitation rate (PR) is how many inches of water a nozzle applies per hour. This is the number that must match across every head on a single valve/zone. Here’s why it matters:

Sources: Hunter MP Rotator specs, Rain Bird R-VAN specs

If you mix a spray nozzle (1.8 in/hr) with a rotary nozzle (0.4 in/hr) on the same zone, the spray area gets nearly four times the water that the rotary area does. One section floods while the other goes dry.

Wind (Especially in West Texas)

Standard spray nozzles produce fine droplets that blow sideways in 15 mph gusts, which is a calm Tuesday in Lubbock. Multi-stream rotary nozzles like the MP Rotator produce larger, heavier droplets that resist wind drift far better. If wind is a recurring coverage problem, replacing spray nozzles with rotary nozzles is one of the most effective upgrades for open West Texas yards.

Tools and Parts You Need

Replacing a sprinkler nozzle requires very little gear:

• Spray head pull-up tool (or needle-nose pliers in a pinch)

• Flat-head screwdriver

• New nozzle in the correct family, arc, and radius

• Matching filter screen for the new nozzle (they differ by brand and type)

• A rag or paper towel

The Rain Bird pull-up tool costs a few dollars and makes the job dramatically easier than gripping a wet, muddy stem with pliers.

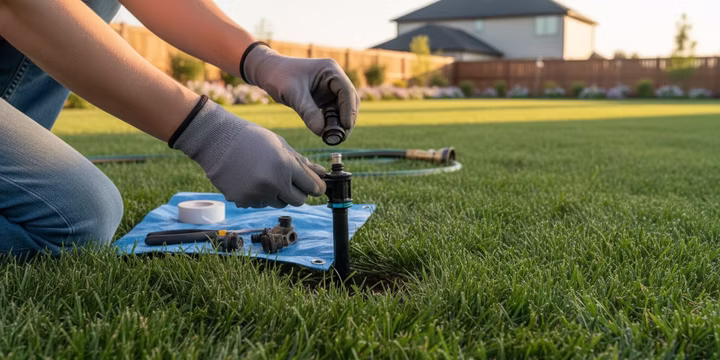

Step by Step: Replacing a Spray Nozzle on a Pop-Up Head

This is the most common nozzle replacement job. It takes 3 to 5 minutes per head when you have parts ready.

Step 1: Turn off the zone. Use your controller or shut off the valve manually. You don’t want water pressure pushing against you while you work.

Step 2: Pull up the stem. Grip it with the pull-up tool and hold it in the extended position. If the stem won’t stay up, the spring or internal components may need cleaning.

Step 3: Unscrew the old nozzle. Spray nozzles thread onto the riser. Turn counterclockwise to remove. Below the nozzle you’ll find a small filter screen, sometimes press-fit, sometimes sitting loosely. Remove that too.

Step 4: Flush the line. Briefly turn the zone on (5 to 10 seconds) with the nozzle off. This flushes grit and debris that would immediately clog your new nozzle. Never skip this step. Practitioners on Reddit’s irrigation forum say most “dead” new nozzles turn out to be screens packed with grit from unflushed lines.

Step 5: Install the new filter and nozzle. Place the correct filter screen for your new nozzle onto the riser, then thread the nozzle on by hand. Don’t over-tighten, as that can distort the spray pattern.

Step 6: Aim and adjust. Rotate the entire stem to point the nozzle’s fixed edge (the left edge on most spray nozzles) where you want coverage to start. Use the center screw to reduce the radius if needed. A quarter-turn clockwise shortens throw, counterclockwise extends it. If the radius screw has no effect at all, the filter screen is likely missing.

Step 7: Test. Run the zone and watch the full pattern. Check for dry gaps, overspray onto hardscape, and confirm the arc covers its intended area.

For detailed adjustment after the swap, our sprinkler nozzle adjustment guide walks through arc and radius fine-tuning step by step. If you’re working with Rain Bird 1800 bodies specifically, the Rain Bird 1800 adjustment guide covers that brand’s quirks.

Step by Step: Replacing a Rotor Nozzle on a Gear-Driven Head

Rotor nozzle replacement is a different process because the nozzle is an insert, not a threaded tip.

Step 1: Turn off the zone and pull up the rotor’s riser.

Step 2: Locate the nozzle set screw (usually a small hex or Phillips screw on the turret). Back it out.

Step 3: Pull the old nozzle insert straight out. On Hunter PGPs, you’ll use the included nozzle wrench. Rain Bird rotors have a similar tool.

Step 4: While the turret is open, clean the internal screen. Rotors have their own filtration, and debris builds up over time.

Step 5: Press the new nozzle insert into the turret. Reset the set screw. Don’t overtighten.

Step 6: Check the arc and radius settings. Rotors have separate adjustment mechanisms for left/right arc stops and radius.

For Hunter rotors, our Hunter sprinkler adjustment guide covers the arc and radius process in detail.

Choosing the Right Replacement Nozzle (and When to Upgrade)

If you’re replacing a broken nozzle with the identical model, the choice is straightforward. But if you’re rethinking the zone, here’s practical guidance:

Tight clay soils or slopes: Choose low-PR rotary nozzles (MP Rotator at ~0.4 in/hr or R-VAN at ~0.6 in/hr). Their slow application rate lets water soak in instead of running off. You’ll need to increase run times significantly (more on that below).

Windy, open sites: Multi-stream rotary nozzles are the clear winner. The larger droplets hold their trajectory in wind that would scatter a standard spray pattern across the driveway.

Small or irregularly shaped areas: Fixed-pattern MPR or HE-VAN spray nozzles give you tighter edge control. Pair them with PRS30 bodies to reduce misting.

Full zone conversion to rotary: If you’re switching an entire spray zone to rotary nozzles, you should also install PRS40 or PRS45 bodies (depending on whether you choose MP Rotators or R-VANs) and reprogram the controller. This is where the job crosses from a quick nozzle swap into a real upgrade.

If you’re considering a full nozzle and body upgrade, our guide to sprinkler repairs and upgrades in Lubbock covers what’s involved and when professional help makes sense.

Run-Time Recalibration After a Nozzle Swap

This is the step almost everyone forgets. When you change nozzle types, you change the precipitation rate, and your old run times no longer apply the same amount of water.

The formula is simple:

New run time = Old run time × (Old PR ÷ New PR)

Here’s a concrete example. Say your spray zone ran for 12 minutes with standard spray nozzles at 1.8 in/hr. You replace them with Rain Bird R-VAN rotary nozzles at 0.6 in/hr.

New run time = 12 × (1.8 ÷ 0.6) = 12 × 3 = 36 minutes

If you had switched to MP Rotators at 0.4 in/hr instead:

New run time = 12 × (1.8 ÷ 0.4) = 12 × 4.5 = 54 minutes

Rain Bird’s precipitation rate equations explain the math behind this if you want to calculate exact PR for your specific nozzle model and spacing.

One irrigation professional on Reddit put it bluntly: “Switching to rotaries? Expect 45 to 60 minutes per zone, not 12 to 15.” If you don’t increase the minutes, your lawn edges will brown.

For more strategies on scheduling and water efficiency after hardware changes, see our water-saving irrigation tips for homeowners.

Compatibility: What Fits What

This trips up a lot of homeowners. Here are the rules.

Spray nozzles are largely cross-brand compatible. Spray bodies from Hunter, Rain Bird, Irritrol, and others use a male-thread riser. Most spray and rotary nozzles are female-threaded and screw right on. Hunter’s own documentation states that “all models are female-threaded for installation on the more common male-threaded spray sprinkler riser.” Practitioners on Reddit regularly confirm mixing Rain Bird nozzles on Hunter bodies and vice versa without issues.

Rotor nozzles are brand-specific. A Hunter PGP nozzle insert will not fit a Rain Bird 5000 rotor. Each brand uses proprietary sizing and retention methods. Follow the manufacturer’s instructions and buy the correct nozzle tree for your rotor model.

Don’t mix spray and rotary nozzles on the same zone unless their precipitation rates happen to match (they almost never do). A zone with half sprays at 1.8 in/hr and half rotaries at 0.4 in/hr will overwater one area by the time the other gets enough.

Always use the correct filter screen. Rotary nozzles like the MP Rotator are more susceptible to clogging than standard sprays because of smaller internal passages. If you have sandy or silty water, make sure the filter is in place and consider additional line filtration.

Troubleshooting Common Problems After Replacing a Sprinkler Nozzle

New Nozzle Not Spraying (or Barely Dribbling)

The most common cause is a clogged filter screen. Pull the nozzle, remove the screen, flush the line again, then reinstall. If you recently repaired a broken pipe on that zone, there’s almost certainly dirt in the line. Flush from the farthest head first, then work inward. Our guide to cleaning sprinkler heads covers this in more detail.

Nozzle Missing, Water Shoots Straight Up

Someone (or a mower) knocked the nozzle off. You need to install a new nozzle and screen. Without the nozzle, unregulated water blasts upward and lowers pressure for every other head on that zone.

Zone Went Weak After Swapping Nozzles

Two likely causes. First, you may have installed higher-flow nozzles that exceed the zone’s available GPM, starving every head. Second, screens on other heads may have caught debris loosened during the swap. Check filters on all heads in the zone. If pressure is the issue, our Rain Bird low-pressure troubleshooting guide walks through the diagnostic path.

Stem Won’t Stay Up

If the pop-up stem binds or won’t extend, the problem is the body, not the nozzle. Dirt inside the cap or a worn spring is usually the cause. If cleaning doesn’t fix it, you’ll need to replace the sprinkler head itself, which is a different job from a nozzle swap.

Radius Adjustment Screw Does Nothing

The filter screen is missing or installed incorrectly. The screen creates back-pressure that allows the radius screw to work. Reinstall the correct filter and the screw will respond.

Mistakes to Avoid When Replacing Sprinkler Nozzles

Keep this checklist handy:

• Mixing sprays and rotaries on one zone. Their precipitation rates differ by 3x to 4x, guaranteeing uneven watering.

• Skipping the line flush. Debris from old nozzles, repairs, or dirt intrusion will clog the new nozzle within minutes.

• Reinstalling without the filter screen. The radius screw won’t work, and debris will enter the nozzle.

• Wrong PRS body for the nozzle. A PRS30 body regulates to 30 PSI, perfect for sprays but too low for MP Rotators that need 40 PSI. Match the body to the nozzle family.

• Not reprogramming the controller. After switching nozzle types, run times must change proportionally to the new precipitation rate.

• Trying to mount a spray-body nozzle on a rotor. An R-VAN or MP Rotator goes on a spray body, not on a Rain Bird 3500 or Hunter PGP. Different product families entirely.

Water Savings Worth Knowing About

For homeowners in West Texas watching water bills climb each summer, nozzle upgrades can make a measurable difference.

The average irrigated home in the U.S. uses approximately 50,500 gallons per year outdoors. The EPA’s WaterSense program estimates that upgrading to pressure-regulated spray bodies in homes with system pressure at or above 60 PSI can save about 5,600 gallons per year by eliminating misting and overspray. Separately, the EPA is developing a WaterSense specification for high-efficiency spray nozzles, projecting approximately 2,400 gallons per year in savings versus standard sprays.

Pair a nozzle upgrade with PRS bodies, cycle-and-soak scheduling, and a weather-based smart controller, and the savings compound. For properties with large turf areas, commercial property managers can find relevant service options in our commercial sprinkler repair guide.

When a Nozzle Swap Won’t Fix It

Sometimes the problem isn’t the nozzle. If the spray body is cracked, leaning, or buried below grade, a nozzle replacement won’t help. If multiple heads on a zone are underperforming and the valve is slow to open, the issue may be upstream (valve, wiring, or controller). And if you’re dealing with repeated clogs zone after zone, the mainline may need flushing from the valve end.

These situations go beyond a 5-minute nozzle swap. If pressure at the heads is unknown or unstable, if zones aren’t mapped, or if you want to convert an entire system to rotary nozzles with proper PRS bodies and reprogrammed run times, that’s where professional help saves time and water.

M&M Sprinklers has been doing irrigation work in Lubbock since 1987. For homeowners who’d rather hand off the troubleshooting, our residential sprinkler services page outlines what a system checkup and nozzle upgrade involves. We pressure-test zones, choose matched-PR nozzles, install PRS bodies where needed, and reprogram controller run times so everything works together.

Frequently Asked Questions

Can I put a Rain Bird nozzle on a Hunter spray body (or vice versa)?

Yes, for spray nozzles. Both brands use the same male-thread riser on their spray bodies, and both brands’ spray and rotary nozzles are female-threaded. Practitioners regularly mix Rain Bird and Hunter spray nozzles without issues. Rotor nozzle inserts, however, are brand-specific and cannot be swapped between brands.

How long does replacing a sprinkler nozzle take?

About 3 to 5 minutes per head once you have the right parts. The flush step adds maybe 10 seconds. If you’re replacing nozzles across an entire zone (say, 8 to 12 heads), plan on 30 to 60 minutes including testing.

Do I really need to flush the line every time I replace a nozzle?

Yes. Dirt, sand, and pipe shavings collect in irrigation lines. Skipping the flush is the number one reason new nozzles fail immediately. Turn the zone on for 5 to 10 seconds with the nozzle removed, let the water clear the debris, then install.

What happens if I switch to rotary nozzles but don’t change my run times?

Your lawn will be underwatered. Rotary nozzles apply water at roughly one-third to one-quarter the rate of standard sprays. If your old spray zone ran 12 minutes, that same depth of water now requires 36 to 54 minutes depending on the rotary nozzle model. Edges and south-facing slopes will brown first.

Can I put MP Rotators on just a few heads in a spray zone?

Not recommended. MP Rotators apply about 0.4 in/hr while standard sprays apply 1.5 to 2.0 in/hr. Mixing them on one valve zone means the spray areas get three to four times more water. Convert the entire zone or don’t convert at all.

My nozzle’s radius screw isn’t doing anything. What’s wrong?

The filter screen beneath the nozzle is missing or improperly seated. The screen creates the back-pressure that allows the screw to throttle the radius. Pull the nozzle, confirm the screen is in place, and reinstall.

Should I use PRS30 or PRS40 bodies?

It depends on the nozzle. Standard spray nozzles perform best at 30 PSI (PRS30). Hunter MP Rotators need 40 PSI (PRS40). Rain Bird R-VAN nozzles are optimized at 45 PSI (PRS45). Using the wrong PRS body will either starve or over-pressurize the nozzle.

When should I call a professional instead of replacing nozzles myself?

If you don’t know your system pressure, if zones keep losing pressure after nozzle swaps, if you want to convert an entire system from sprays to rotaries, or if you’re dealing with unmapped zones and recurring clogs, professional diagnosis will save you from trial-and-error frustration. M&M Sprinklers offers full irrigation repair and upgrade services in Lubbock including pressure testing, nozzle matching, PRS body installation, and controller reprogramming.
