How to Flush and Install Sprinkler Nozzle: 2026 Guide
TL;DR
Flushing and installing a sprinkler nozzle is a two-step process: first you run water through the sprinkler body (with the nozzle removed) to purge dirt, sand, and debris from the line, then you thread on the correct replacement nozzle with its filter screen. Skipping the flush step is the single most common reason new nozzles fail within days. The whole job takes about 3 to 5 minutes per head, but those minutes protect your coverage, your water bill, and the life of your nozzle.
What “Flush and Install Sprinkler Nozzle” Actually Means
The phrase “flush and install sprinkler nozzle” describes a standard two-part maintenance procedure used on pop-up spray bodies and rotor sprinklers. You’ll find it referenced in manufacturer instructions from Hunter and Rain Bird, in seasonal maintenance checklists, and in nearly every professional repair guide.
Here’s the core idea: before you put a new nozzle on a sprinkler riser, you need to run water through the open body to push out any debris that has accumulated in the pipe. Then, and only then, you seat the filter screen, thread on the nozzle, aim it, and adjust the radius.
It sounds simple. It is simple. But the flush step gets skipped constantly, and that single shortcut causes most nozzle failures homeowners experience.
If you’re working through a full nozzle swap, our step-by-step nozzle replacement guide walks through the complete process with photos.
What “Flush” Means in This Context

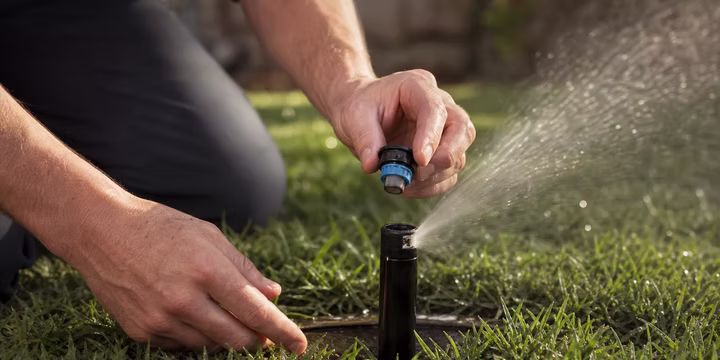

Flushing means running water through the sprinkler body while the nozzle is removed (or while a flush cap is still in place) so that dirt, sand, PVC shavings, glue residue, and sediment get pushed out before they can clog anything.
How a Flush Cap Works
Most new pop-up sprinkler bodies ship with a flush cap already threaded onto the riser instead of a nozzle. This isn’t just protective packaging. The flush cap is a functional tool engineered to maintain pressure in the irrigation system during the flushing process while directing debris outward through a small opening.
Hunter spray bodies, for example, come with a directional flush plug. The recommended procedure is to pull up and turn the riser so the flush plug opening points away from walkways, run the zone for the recommended duration, then pull up the riser again and unthread the flush plug counterclockwise before installing the actual nozzle.
What You’re Flushing Out
Debris enters irrigation lines from more sources than most people realize:
Construction residue. PVC shavings, primer, and glue beads from pipe assembly. As one installer on the LawnSite forum put it, “all it takes is a drop of glue or a bead of solder to get into a valve and jar it open.”
Soil and sand. During installation or repair, dirt enters at every connection point, even with protective covers in place.
Back-siphonage. When water drains to the lowest head in a zone, it can pull dirt and sand back into the nozzle from below. This means even a system that was flushed properly at install can re-clog over time if the low-point heads lack check valves (sometimes called SAM valves).
Seasonal accumulation. Over winter, sediment settles in pipes. Spring start-up pushes it all toward the heads.
This is why flushing matters during spring sprinkler readiness, not just at initial installation.
How Long to Flush
Recommendations vary. A minimum of 20 to 30 seconds will clear most loose debris. Rain Bird’s official guidance suggests 2 to 5 minutes per head for a thorough flush. If your system has been sitting idle for months or you’ve just completed a pipe repair, err toward the longer duration.
What “Install” Means in This Context
After the flush, installation is the process of threading or inserting the correct nozzle onto the riser, seating the filter screen, aiming the fixed left edge of the spray pattern, and adjusting the radius.
The Actual Sequence
Insert the filter screen first. Every spray nozzle has a basket-style filter screen that sits below it inside the riser. This screen is the last line of defense against debris reaching the nozzle orifice. Always install it before the nozzle.
Thread the nozzle clockwise onto the riser until snug. Don’t over-tighten, as these are plastic threads.
Aim the nozzle. Pull up the riser and turn it (or use the ratchet feature on Hunter and Rain Bird bodies) so the fixed left edge of the spray pattern lines up with the edge of the area you want to water.
Adjust the radius. Use the radius reduction screw on top of the nozzle. A quarter-turn clockwise shortens the throw; counterclockwise extends it.
Here’s a diagnostic tip that most guides miss: if the radius screw has no effect at all, the filter screen is likely missing. Without the screen creating back-pressure, the radius screw can’t regulate flow.
Spray Nozzles vs. Rotor Nozzles: Installation Differences
The flush-and-install procedure applies to both spray nozzles and rotary nozzles, but the installation mechanics differ slightly.
Spray nozzles (like Rain Bird MPR or Hunter fixed-arc nozzles) thread directly onto the riser. They produce a fixed fan of water in a set arc pattern, applying about 1.0 to 1.5 inches of water per hour.
Rotary nozzles (like Hunter MP Rotator or Rain Bird R-VAN) also thread onto standard spray body risers, but they use rotating streams instead of a fixed fan. They apply water much more slowly, around 0.25 to 0.5 inches per hour, which makes them better for slopes and windy conditions. Their larger water droplets resist wind drift far better than the fine mist from standard sprays, a real consideration in West Texas where sustained winds are a daily reality.
Rotor nozzle inserts (the turret assemblies inside gear-driven rotors like the Hunter PGP or Rain Bird 5000) are a different story. These are brand-specific and cannot be swapped between manufacturers.
Cross-Brand Compatibility
Good news for spray nozzles: both Hunter and Rain Bird use the same male-thread riser on their spray bodies, and both brands’ spray and rotary nozzles are female-threaded. Practitioners regularly mix Rain Bird nozzles on Hunter bodies (and vice versa) without issues. This gives you flexibility when choosing a replacement nozzle after flushing.
Why the Flush Step Gets Skipped (And Why That’s Costly)
The flush step gets skipped for one reason: it feels unnecessary. You’re standing there with a brand-new nozzle in your hand, the old one is already off, and it seems faster to just thread the new one on. Professionals aren’t immune to this temptation either.
On professional irrigation forums, practitioners debate this regularly. One installer on LawnSite emphasized, “one should always flush after the heads are in and before you nozzle. Get the debris out first… there will be some there.” But manufacturers have acknowledged that because nozzles often come pre-installed on spray bodies, contractors sometimes skip removing them to flush, “leading to the potential of clogged filter screens and inoperative nozzles.”
What Happens When You Skip It
The consequences show up fast:
Clogged filter screens within days. The screen catches the debris the flush would have removed, blocking water flow to the nozzle. Practitioners on Reddit’s irrigation forum report that most “dead” new nozzles turn out to be screens packed with grit from unflushed lines.
Uneven spray patterns. Partial clogs block water from one side of the nozzle orifice, creating lopsided coverage. Small pebbles or sand lodged in the nozzle create dry, brown spots in the lawn.
Head won’t pop up. In severe cases, debris jams the riser mechanism itself, preventing the head from extending under pressure.
If you’re already seeing coverage problems across multiple heads, the issue may go beyond a simple clog. Our guide on common sprinkler system issues covers the broader troubleshooting process.
Adjustable Nozzles Clog More Easily
Not all nozzles are equally vulnerable. Adjustable spray nozzles (often called variable arc nozzles, or VANs) have smaller internal passages and restricted flow paths when adjusted to narrow arcs. This makes them significantly more clog-prone than fixed-arc nozzles. If you’re replacing a nozzle that keeps clogging, consider switching to a fixed-arc nozzle for that position whenever the coverage pattern allows it.
Related Concepts Worth Knowing After a Flush and Install
Replacing a nozzle isn’t just a mechanical task. It’s a hydraulic change. Install the wrong nozzle family, skip the filter, or forget to reprogram your controller, and you trade one coverage problem for another.
Matched Precipitation Rate (MPR)
Matched precipitation rate means every sprinkler head in a zone applies water at the same rate, measured in inches per hour. When all heads are matched, every part of the zone receives equal water over the same run time.
According to the Irrigation Association, using matched precipitation rate nozzles can reduce water usage by up to 30% compared to conventional spray nozzles. This matters because when you flush and install a new nozzle, you need to make sure it matches the precipitation rate of the other nozzles on that zone.
Mixing spray nozzles (1.0 to 1.5 inches per hour) with rotary nozzles (0.25 to 0.5 inches per hour) on the same zone is a common mistake. The spray nozzles will apply three to six times more water in the same run time, creating uneven water distribution across the zone.
Run-Time Recalculation After a Nozzle Swap
If you switch nozzle families (say, from standard sprays to rotary nozzles), you must reprogram your controller. Here’s the math:
If your spray zone ran for 12 minutes with standard spray nozzles at 1.8 inches per hour and you replace them with rotary nozzles at 0.6 inches per hour, the new run time equals 12 multiplied by (1.8 divided by 0.6), which is 36 minutes. Skip this recalculation and your lawn gets one-third the water it needs.
For help with controller programming, see our Hunter sprinkler system programming guide.
Pressure-Regulated Spray Bodies (PRS)
The body your nozzle sits on matters as much as the nozzle itself. Without pressure regulation, high supply pressure causes nozzles to mist and fog instead of projecting a clean arc. This wastes water and ruins coverage uniformity.
Pressure-regulated spray bodies (PRS) solve this at the individual head level. They’re now mandated for new sprinkler installations in several states, including California, Colorado, and Washington. When you’re doing a flush and install on an older system, it’s worth checking whether the body has a pressure regulator, especially if you notice misting when the zone runs. Optimal nozzle performance happens when pressure at the head is in the 30 to 45 psi range, where water droplets stay large enough to resist wind.
Wind and Nozzle Choice in West Texas
In Lubbock and surrounding towns like Levelland, Wolfforth, and Plainview, wind is a constant factor. Standard spray nozzles produce fine droplets that are easily carried off-target. Rotary nozzles produce larger droplets that hold their trajectory better in wind. If you’re flushing and installing replacement nozzles on a zone that consistently underperforms on windy days, switching to rotary nozzles (and recalculating your run times) can make a measurable difference.
Rotary nozzles cost more ($4 to $8 each versus $1 to $3 for standard spray nozzles), but the improvement in wind resistance often justifies the price in exposed areas.
When to Call a Professional
A single flush and install is a straightforward DIY job. But some situations call for professional help:
Multiple heads on one zone are clogged. This often signals a larger issue, like a broken pipe introducing dirt into the line, a failed valve, or chronic back-siphonage from missing check valves.
You’re switching nozzle families across a zone. Going from spray to rotary nozzles involves run-time recalculation, possible pressure adjustments, and verification that the zone’s flow rate supports the new nozzles.
You don’t know your system’s pressure or precipitation rate. Without these numbers, nozzle selection is guesswork.
The problem keeps coming back. Recurring clogs after proper flushing suggest debris is entering the system from an ongoing source, something a full system inspection can diagnose.
If you suspect the issue extends beyond nozzles, our signs your system needs repair guide covers the most common indicators and what fixes typically cost.
For homeowners in Lubbock and West Texas, M&M Sprinklers technicians pressure-test zones, choose matched-PR nozzles, install PRS bodies where needed, and reprogram controller run times as part of the repair process.
Check out our sprinkler repair cost guide to understand what professional nozzle work typically runs.
Frequently Asked Questions
How long should I flush a sprinkler head before installing a new nozzle?
At minimum, flush for 20 to 30 seconds. Rain Bird recommends 2 to 5 minutes for a thorough flush, which is better practice after repairs, new installations, or spring start-up when sediment has settled in the pipes over winter.
Can I use a Rain Bird nozzle on a Hunter spray body?
Yes. Both brands use the same standard male-thread riser and female-threaded nozzle design for spray bodies. Spray nozzles and rotary nozzles are cross-brand compatible. Rotor nozzle inserts (the turrets inside gear-driven rotors) are brand-specific and cannot be swapped.
What is a flush cap on a sprinkler head?
A flush cap is a factory-installed plug that ships on new spray bodies in place of a nozzle. It maintains system pressure while allowing debris to exit through a small opening during the initial flushing process. It’s designed to be removed and replaced with the actual nozzle after flushing is complete.
Why does my new sprinkler nozzle keep clogging?
The most common cause is skipping the flush step before installation. Debris already in the line gets trapped in the filter screen or nozzle orifice. If you flushed properly and the clog returns, check for back-siphonage at low-point heads (which may need check valves) or consider switching from an adjustable nozzle to a fixed-arc nozzle, which has larger internal passages and resists clogging better.
How long does it take to flush and install a sprinkler nozzle?
About 3 to 5 minutes per head. That includes pulling up the riser, removing the old nozzle and filter screen, flushing the line, installing the new filter screen and nozzle, and aiming the spray pattern.
Do I need to adjust my controller after replacing sprinkler nozzles?
Only if you change nozzle families. Swapping a worn spray nozzle for a new spray nozzle of the same type requires no controller changes. But switching from standard spray nozzles to rotary nozzles means you need to increase zone run times by three to six times because rotary nozzles apply water much more slowly.
What happens if the radius adjustment screw doesn’t work on my new nozzle?
The filter screen is probably missing. The screen creates the back-pressure that allows the radius screw to regulate flow. Without it, turning the screw has no effect. Remove the nozzle, verify the screen is seated in the riser, then reinstall.
Should I flush sprinkler heads every spring?
Yes. Sediment accumulates in pipes over the off-season. Flushing each zone during spring start-up, even for just 30 seconds per head with the nozzle removed, prevents the most common early-season clog problems and is standard practice for both DIYers and professionals.
