Uneven Sprinkler Water Distribution: Fixes for 2026

TL;DR

Uneven sprinkler water distribution means some parts of your lawn get too much water while others get too little during the same irrigation cycle. The most common causes are clogged or misaligned heads, mixing different sprinkler types on the same zone, improper spacing, and pressure problems. You can measure the problem at home using a simple catch-can test, and any system scoring below 60% distribution uniformity needs immediate attention.

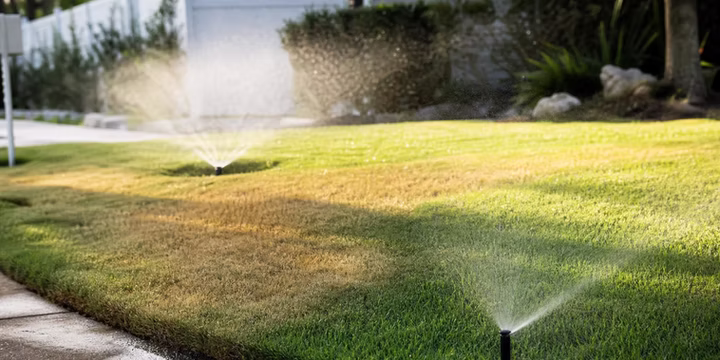

If you’ve noticed dry brown patches next to soggy, oversaturated areas in your yard, you’re looking at the visible symptoms of uneven water distribution from your sprinkler system. It’s one of the most common irrigation problems homeowners face, and in water-restricted areas like Lubbock, it can mean the difference between a healthy lawn and a dead one.

This guide explains exactly what causes uneven sprinkler coverage, how to measure it yourself, and when the problem requires professional help.

👉 Already seeing signs your system needs repair? Don’t wait for dry spots to spread.

What Uneven Sprinkler Water Distribution Actually Means

In plain terms, uneven water distribution occurs when your sprinkler system applies significantly more water to some areas of your lawn than others during the same watering cycle. You’ll see it show up as:

• Dry patches where grass turns brown or thins out

• Soggy spots with standing water or runoff

• Inconsistent grass color, with dark green areas next to pale or yellowing turf

• Fungal growth in overwatered zones while nearby areas stay parched

The irrigation industry measures this problem with a metric called Distribution Uniformity (DU), expressed as a percentage. A DU of 100% would mean every square foot of your lawn receives exactly the same amount of water. That’s impossible in practice, but a DU above 80% is generally considered acceptable. Systems that fall below 60% need immediate correction, according to LSU AgCenter research.

Here’s the critical distinction: DU is not the same as irrigation efficiency. Efficiency measures how well the water you apply matches what your plants actually need. But you cannot have high efficiency without first having high uniformity. If your system distributes water unevenly, you’re forced to overwater the whole lawn just to keep the driest spots alive, which wastes water everywhere else.

Common Causes of Uneven Sprinkler Coverage

Clogged, Damaged, or Misaligned Heads

This is the most frequent culprit. Over time, dirt, debris, and mineral deposits accumulate inside sprinkler nozzles, reducing water flow and distorting spray patterns. Heads also get knocked out of alignment by lawn mowers, foot traffic, or soil settling. A head that’s tilted, sunken below grade, or blocked by overgrown grass will throw water in the wrong direction or not at all.

If a head is sitting too low in the ground, it may not fully pop up during operation, sending water sideways into the surrounding turf instead of across the zone. You can learn how to fix a sprinkler head that’s too low with a simple riser adjustment.

Mixing Spray Heads and Rotors on the Same Zone

This is the cause that irrigation professionals are most emphatic about, and the one that homeowner content consistently under-explains.

Spray heads and rotors have dramatically different precipitation rates. A typical spray head puts out around 1.5 inches per hour, while a rotor delivers roughly 0.25 to 0.6 inches per hour. That means areas covered by spray heads receive up to six times more water than areas covered by rotors on the same zone running the same duration.

Practitioners on Reddit and irrigation forums consistently call this out as the number one design flaw in older residential systems. As one professional on Sprinkler Talk Forum put it plainly: “You cannot mix spray and rotors on the same zone.” Others on LawnSite describe it as “cutting corners on a new install, period.”

The fix isn’t always a complete system overhaul. Replacing spray head nozzles with MP Rotator nozzles (which operate at precipitation rates closer to rotors) can bring a mixed zone close to matched precipitation rates without re-piping. For a deeper look at the differences, see our guide to types of sprinkler heads.

Improper Head Spacing

Sprinkler systems are designed to require 100% overlap of watered areas, a principle called head-to-head coverage. Each sprinkler should throw water all the way to the next sprinkler in every direction. A head with a 10-foot throw needs to be spaced 10 feet from its neighbor, which means the two heads’ patterns completely overlap in the middle.

When heads are spaced too far apart (common in cost-cutting installations or when heads get removed and aren’t replaced), the gaps between them receive significantly less water. This creates the classic “brown stripe” pattern between green circles.

Water Pressure Problems

Both high and low pressure cause uneven sprinkler water distribution, just in different ways.

High pressure (above 60 PSI) atomizes water into a fine mist that drifts with any breeze and evaporates before reaching the soil. If your system pressure exceeds 70 PSI, a pressure regulator at the point of connection is the standard fix. Pressure-regulated sprinkler heads are another option for individual zones.

Low pressure produces weak streams with large droplets that fall short of their intended throw distance. Heads may not fully pop up. The result is poor coverage, runoff near the heads, and dry spots at the edges of each zone. If you’re dealing with this, our guide on fixing low water pressure in sprinklers walks through diagnosis and solutions.

Underground Pipe Leaks

A cracked pipe or loose fitting underground drains pressure from your system, creating weak spots in coverage on every downstream head. Warning signs include unusually wet patches of soil when the system isn’t running, areas of extra-green grass (fed by the constant moisture from a leak), and hissing sounds during operation.

Underground leaks are tricky because the visible symptoms often appear far from the actual break. If you suspect one, our broken sprinkler line repair guide covers what to look for and how to approach the repair.

Valve Malfunctions

Zone valves regulate water flow to each section of your system. When a valve fails partially (stuck partially open or unable to open fully), it restricts flow to that zone, causing low pressure and uneven coverage across every head in the zone. Signs include zones that won’t turn on or off, noticeably lower pressure on one zone compared to others, or unexplained spikes in water usage.

Wind Distortion

Wind is an underappreciated factor in residential irrigation, especially in West Texas. Research from Oklahoma State Extension found that wind shifted a sprinkler’s distribution pattern by approximately 5 feet downwind. On a residential spray head zone where throw distances are only 10 to 15 feet, a 5-foot shift means some areas get double coverage while others get almost none.

High-pressure misting makes this worse. Smaller droplets under excessive pressure are far more susceptible to wind drift and evaporation losses. Areas prone to consistent wind may need closer head spacing, lower-trajectory nozzles, or rotary nozzles that produce heavier, more wind-resistant streams.

How to Test for Uneven Distribution: The Catch-Can Method

You don’t need professional equipment to measure your system’s distribution uniformity. The catch-can test is the standard method used by irrigation auditors, and homeowners can do a simplified version with materials from the kitchen.

What You Need

• At least 12 identical containers (tuna cans, small plastic cups, or purpose-made catch cups all work)

• A ruler or measuring tape for water depth

• A calculator

• A calm day with wind below 5 mph

Steps

1. Place containers in a grid pattern across one irrigation zone, spacing them evenly. More containers give more accurate results. Twelve is the minimum for meaningful data, but 20 to 24 is better.

2. Run the zone for 15 to 30 minutes. Shorter tests may not collect enough water for accurate measurement. Make sure it’s a calm day, as wind will distort your results.

3. Measure the water depth in each container and record the values.

4. Calculate the overall average of all containers.

5. Calculate the lowest-quarter average. Sort your measurements from lowest to highest, take the bottom 25% (if you used 24 cans, that’s the 6 lowest), and average those.

6. Apply the DU formula: (Lowest-quarter average ÷ Overall average) × 100 = DU percentage.

Interpreting Your Results

• Above 80%: Your system is performing well. Minor adjustments may still help.

• 60% to 80%: Room for improvement. Check for the causes listed above.

• Below 60%: Significant uneven water distribution that needs correction. At this level, you’re wasting substantial water while still leaving parts of your lawn underwatered.

A Michigan State University study found that replacing a worn sprinkler package improved uniformity from 73% to 91%, saving over 15 million gallons of water and paying for itself in under five years. The scale was agricultural, but the principle holds for residential systems too.

Why Uneven Water Distribution Is Especially Critical in Lubbock

In many parts of the country, homeowners can partially compensate for poor distribution uniformity by simply running their system longer. That option doesn’t exist in Lubbock.

The City of Lubbock’s irrigation restrictions allow watering only two days per week, with a cap of 1.5 inches per zone per week. Watering hours are limited to midnight through 10:00 AM and 6:00 PM through midnight on your assigned days. Irrigation that produces runoff violates city code.

Here’s what that means mathematically. If your system has a DU of 75%, you need to apply roughly 1.33 inches just to ensure the driest areas receive 1 inch. With a 1.5-inch weekly cap, you barely have margin. Drop to 60% DU and you’d need to apply 1.67 inches to meet minimum coverage, which exceeds the legal limit. You literally cannot water enough to keep your lawn alive without either fixing the uniformity problem or accepting dead spots.

West Texas wind compounds everything. With sustained winds shifting spray patterns by 5 feet or more, spray head zones in exposed areas may perform far worse than their calm-day DU test suggests. Using our spring sprinkler startup checklist each season helps catch alignment and coverage issues before the irrigation restriction period starts.

How to Fix Uneven Sprinkler Water Distribution

The right fix depends on the root cause. Here’s a practical hierarchy:

Simple DIY fixes:

• Clean clogged sprinkler heads by removing nozzles and flushing debris

• Realign tilted heads and adjust arc and radius settings so coverage patterns overlap properly

• Raise sunken heads with riser extensions

• Replace worn nozzles that have degraded over time

Moderate fixes:

• Install pressure regulators or pressure-regulated heads to control misting

• Retrofit mixed zones by replacing spray nozzles with MP Rotator nozzles to match rotor precipitation rates

• Implement cycle-and-soak programming on your controller (shorter run times with breaks between cycles to prevent runoff while achieving full infiltration)

Professional-level fixes:

• Add or reposition heads to achieve proper head-to-head spacing

• Split zones that combine incompatible head types

• Locate and repair underground leaks

• Replace failed valves

• Conduct a comprehensive irrigation audit to identify design-level problems

When to Call a Professional

Some causes of uneven sprinkler water distribution are straightforward enough for a handy homeowner to address. Others are not. Call a professional when:

• Your catch-can test shows DU below 60%

• The problem stems from a design flaw (wrong head types on the same zone, inadequate spacing)

• You suspect underground leaks or valve failures

• You’ve made adjustments but dry spots persist

• You need a full system audit to identify overlapping problems

A professional irrigation audit goes beyond the catch-can test. It evaluates pressure at multiple points, checks every head’s performance, identifies design deficiencies, and produces a prioritized repair plan.

For Lubbock homeowners dealing with persistent coverage problems, sprinkler repair in Lubbock from an experienced local contractor can resolve issues that DIY adjustments can’t touch, particularly design flaws in older systems that were never built with matched precipitation rates or proper head-to-head coverage in the first place.

👉 For ongoing protection, regular sprinkler system maintenance catches uniformity problems early, before they turn into dead grass and wasted water.

Frequently Asked Questions

What is distribution uniformity (DU) and what’s a good number?

Distribution uniformity is a percentage that measures how evenly your sprinkler system applies water across a zone. A DU above 80% is considered acceptable. Below 60% indicates a serious problem that needs immediate attention. You can measure it yourself with the catch-can test described above.

Can I mix spray heads and rotors on the same zone?

No. Spray heads apply water at roughly 1.5 inches per hour while rotors apply 0.25 to 0.6 inches per hour. Running them on the same zone for the same duration means spray areas get up to six times more water. If your system has mixed heads on a zone, the best retrofit is replacing the spray nozzles with rotary nozzles that match rotor precipitation rates.

Why does my lawn have dry spots even though I water regularly?

The most likely cause is uneven sprinkler water distribution. Clogged nozzles, misaligned heads, improper spacing, or pressure problems can all create dry spots that won’t improve no matter how long you run the system. A catch-can test will tell you whether uniformity is the issue.

How does wind affect sprinkler coverage?

Wind can shift a sprinkler’s distribution pattern by 5 feet or more downwind. In West Texas, where sustained winds are common, this is a major contributor to uneven coverage. Lower-trajectory nozzles, closer head spacing, and rotary nozzles (which produce heavier streams less prone to drift) all help.

What is head-to-head coverage?

Head-to-head coverage means each sprinkler head throws water all the way to the next head in every direction. This creates 100% overlap, which is required for even distribution. A head with a 10-foot throw should be spaced 10 feet from its neighbor. Wider spacing creates dry gaps between heads.

How often should I test my system’s distribution uniformity?

At minimum, run a catch-can test once per year, ideally before irrigation season begins. Also retest after any repairs, head replacements, or changes to your system’s pressure or layout. In Lubbock, testing before the April 1 restriction period ensures your system is performing efficiently within the two-day watering limit.

Can a smart controller fix uneven water distribution?

A smart controller with zone-specific cycle-and-soak programming and weather-based scheduling can help you work around mild uniformity issues by preventing runoff and adjusting for conditions. But it cannot fix the underlying mechanical or design problems causing uneven distribution. Fix the hardware first, then optimize with smart programming.
