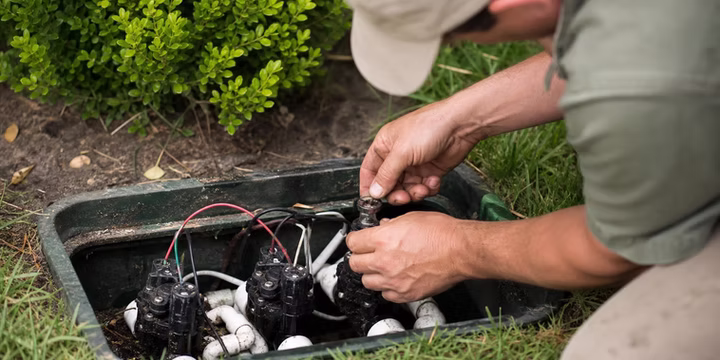

Rain Bird Sprinkler System Valve Repair: 2026 How-To Guide
Updated: Aug 11
TLDR
Rain Bird sprinkler system valve repair usually comes down to four categories: electrical problems (controller, wiring, solenoid), hydraulic problems (diaphragm, pilot port, bleed screw), sealing failures (valve seat, O-ring, cracked body), or system conditions like low pressure and debris. Before replacing any parts, check the basics: is the controller programmed, is the shutoff open, does the zone run manually, and does the solenoid click? If water keeps running after the controller is unplugged, shut off the irrigation supply and call a professional.
If a sprinkler zone won’t turn on, won’t shut off, or keeps leaking water long after it should have stopped, the problem almost always traces back to the valve. For homeowners with Rain Bird systems, understanding what each valve component does is the fastest path to figuring out what failed and whether you can fix it yourself.
This glossary is built around diagnosis. Every term connects to a symptom, a quick check, and a repair decision. In Lubbock, where watering restrictions run from April through September, a leaking Rain Bird valve wastes water, spikes bills, and can violate city irrigation codes.
If you’re already noticing issues, start with our overview of signs your sprinklers need repair.
If water is running right now and you cannot stop it, turn off your irrigation shutoff valve and call M&M Sprinklers at (806) 794-1300.
What Rain Bird Valve Repair Actually Means
Rain Bird sprinkler valve repair is not one job. It covers four categories of failure:
Electrical control issues with the controller, station wire, common wire, or solenoid.
Hydraulic control issues with the diaphragm, pilot port, bleed screw, or flow control.
Sealing failures at the diaphragm seat, bonnet gasket, solenoid O-ring, or valve body.
System conditions like low pressure, debris, clogged drip filters, or backflow problems.
Most homeowners jump straight to buying a new diaphragm or solenoid. Rain Bird’s own troubleshooting guide says to first check whether the controller is plugged in, the master shutoff is open, flow control is open, and pressure is adequate before replacing anything. Don’t buy parts yet.
How a Rain Bird Valve Works in Plain English
A Rain Bird irrigation valve is not an electric switch that pushes water open. It uses water pressure to do the heavy lifting. The solenoid just controls a tiny passage.
Here is the sequence:
The controller sends 24 volts through the station wire to the solenoid.
The solenoid’s plunger lifts, opening a small pilot port.
Pressure above the diaphragm bleeds off through that port.
With less pressure pushing down, incoming water pressure lifts the diaphragm from below, and the valve opens.
When the controller stops sending power, the plunger drops, the port closes, pressure rebuilds above the diaphragm, and the valve seals shut.
This is why a tiny piece of debris in a pilot port, a small diaphragm tear, or a clogged solenoid screen can shut down an entire zone. The solenoid is not muscling water through the pipe. It is controlling a pressure balance. For a broader look at how your entire system connects, see our guide on how a sprinkler system works.
Rain Bird Sprinkler System Valve Repair Glossary
Each entry below covers what the part is, what symptoms it causes, and what to check first.
Solenoid
A small electromagnet on top of the valve that opens and closes the pilot port when the controller sends power. It looks like a small cylinder with two wires coming off it.
Symptoms when it fails: Zone won’t turn on from the controller but opens manually (by turning the solenoid a quarter turn). Or the solenoid clicks but nothing happens.
Quick check: Listen for a click during Manual Start. If you hear it but the zone doesn’t run, a clogged solenoid screen, stuck plunger, or low pressure may be the real issue. Rain Bird recommends swapping the solenoid with one from a known-good, same-model valve to see if the problem follows the part.
Practitioners on Reddit report that even with 24 volts and normal resistance readings (around 42 ohms), a Rain Bird DV100 solenoid can still fail to open the valve due to clogged internal screens or corroded splices. “Voltage present” does not always mean “the valve will open.” For deeper solenoid diagnosis, see our guide on what a sprinkler solenoid does.
Diaphragm
The flexible rubber seal inside the valve that controls main water flow. It sits between the bonnet and valve body and has a small center hole that is critical to operation.
Symptoms when it fails: Zone won’t shut off. Water seeps through the lowest head long after shutdown. Weak or erratic flow.
Quick check: If unplugging the controller doesn’t stop the water, suspect the diaphragm, seat, or a mechanical problem rather than the controller. Inspect for tears, stiffness, misalignment, or debris clogging the small center hole.
Rain Bird lists different diaphragm part numbers for each valve family. The DV/DVF/ASVF diaphragm (part 21074603) is not the same as the CP/CPF or HV/HVF diaphragm. Model identification matters before ordering parts.
Valve Seat
The smooth sealing surface inside the valve body where the diaphragm presses down to stop flow. Dirt, sand, PVC shavings, or rocks on the seat prevent a tight seal.
Quick check: With water off and bonnet removed, run your finger across the seat. It should be smooth and free of grit. Rain Bird instructs users to inspect the valve body seat for dirt during any disassembly.
Bonnet (Valve Top)
The top portion covering the diaphragm, spring, solenoid port, and internal passages. On some models it is held by screws. On jar-top models like the JTV, it twists off.
A “top rebuild” means replacing the bonnet, diaphragm, and solenoid while leaving the glued valve body in the ground. This avoids cutting pipe but only works if the body and seat are undamaged and the replacement matches the exact valve model.
Valve Body
The lower housing connected to mainline and lateral piping, usually PVC. Cracks cause leaks that no top rebuild will fix. A valve installed backward causes erratic operation. When the body is the problem, pipe has to be cut. That is when Rain Bird valve repair moves from a parts swap to a plumbing job.
Bleed Screw (Manual Bleed)
A small screw that, when loosened, bleeds water from above the diaphragm to open the valve manually. Rain Bird says to turn it counterclockwise only one turn, flush for one minute, then close it. This can clear debris without buying parts. Leaving it loose keeps the valve open, a common accidental cause of zones that won’t shut off.
Flow Control
A stem on some Rain Bird models that adjusts how much water passes through the valve. It does not function as the on/off control. A closed flow-control stem makes a perfectly good valve look broken. If a zone has weak flow, make sure the flow control is open before suspecting the valve or pressure.
Pilot Port / Bleed Port
A small internal passage that lets pressure above the diaphragm change. This is the passage the solenoid controls. Debris here stops the valve from opening or closing reliably, even with a good solenoid and new diaphragm.
Spring
Sits above or around the diaphragm and helps return it to the correct position. Rain Bird warns not to forget the spring when installing a new diaphragm. It is easy to leave in the valve box during reassembly.
Common Wire and Station Wire
The common wire is the shared return path for all solenoids. The station wire runs from one controller terminal to one solenoid. If multiple zones fail at once, suspect the common wire first. If one zone fails electrically, suspect its station wire or splice.
Rain Bird recommends checking for 24 to 30 volts at the controller terminals and again at the valve during Manual Start. You can test this yourself with our guide on testing a solenoid with a multimeter.
Valve Box
The in-ground access box protecting the valve. Water inside can come from fittings, bonnet leaks, solenoid O-ring failure, body cracks, or high groundwater.
One irrigation professional shared on LinkedIn that four zones failed during a spring startup because a chipmunk had chewed through solenoid wires inside the valve box. The fix was wire repair, not valve replacement. If your valve box is flooded, learn how to find a leak in a sprinkler system before assuming the worst.
Low-Head Drainage
Water that drips from the lowest sprinkler head after the valve closes. This is often just residual water draining downhill, and Rain Bird says it can be normal on slopes or long pipe runs. If the dripping stops within minutes and the area dries, the valve is probably fine. If it never stops, the valve is seeping.
This distinction saves homeowners from replacing a perfectly good valve. For more context, read about sprinkler head leaking causes.
Anti-Siphon Valve
A combined valve and anti-siphon device installed above ground. Unlike in-line valves, these have height requirements and should never be buried. They provide basic backflow protection but are not a substitute for a dedicated backflow preventer assembly.
Backflow Preventer
Protects drinking water from contaminated irrigation water flowing backward into the supply. In Lubbock, irrigation systems connected to city water require a backflow assembly, with testing every one to three years by a licensed tester. Valve repair and backflow repair are different jobs with different expertise requirements.
If your valve repair uncovers a backflow issue, that is a separate inspection and certification process. Learn how to tell if your backflow device needs repair.
Pressure Regulator and Filter
A pressure regulator reduces incoming water pressure. Too much causes misting, water hammer, and component damage. Too little means weak coverage. Lubbock code specifically prohibits misting from excessive pressure.
Filters catch debris before it reaches small valve or drip components. Rain Bird specifies a 200-mesh filter upstream for low-flow or drip applications. A clogged filter mimics a bad valve, especially on drip zones. For pressure troubleshooting, see our guide on sprinkler system water pressure.
Symptom-to-Part Cheat Sheet
A useful principle from a recent r/Irrigation thread: work “least invasive to most.” Verify voltage at the valve, switch the controller wire to a known-good zone port, check voltage under load, inspect the solenoid exhaust port, check the screen on the bottom of the solenoid. Only then open the valve for internal inspection.
Three Common Rain Bird Valve Repair Paths
Clean and Reset
The cheapest option. Turn the bleed screw counterclockwise one turn, let water flush for a minute, then close it. Tighten the solenoid and bleed screw. Open the flow control if it has been turned down. Many Rain Bird valve problems are debris problems, and flushing solves them without buying parts.
Replace the Diaphragm or Solenoid
Replace the diaphragm when symptoms point to a damaged, clogged, or torn diaphragm and the bonnet, body, and solenoid are good. Shut off water first. Remove the bonnet screws or jar-top lid, lift out the spring and diaphragm, inspect everything, clean the seat and ports, and install the new diaphragm with proper alignment. Rain Bird emphasizes checking the diaphragm’s small hole for clogs, inspecting the bonnet bleed port for dirt, and aligning tabs correctly during reassembly.
Replace the solenoid when the valve works manually, wiring and controller output check out, and the problem follows the solenoid in a swap test. Always use model-specific parts. Rain Bird DV/DVF solenoids are not the same as HV/HVF or CP/CPF parts.
Top Rebuild or Full Valve Replacement
Top rebuild replaces the bonnet, diaphragm, and solenoid together. This makes sense when the valve is already open and the parts are old. One source explains that a top assembly rebuild fixes diaphragm and solenoid issues at once, but it will not fix a cracked body or damaged seat, and it requires an exact model match.
Practitioners on Reddit often advise that once the diaphragm is open and brittle, buying the same valve model and swapping the entire top is more practical than patching tiny components.
Full valve replacement is necessary when the body is cracked, the seat is damaged, threads are stripped, or the model is obsolete. This means cutting pipe. For Lubbock-area cost context, see our valve repair cost guide.
Rain Bird Valve Repair in Lubbock: Why Leaks Cannot Wait
Lubbock restricts outdoor watering to two assigned days per week from April 1 through September 30, with no Sunday irrigation. The city recommends cycle-and-soak intervals (3 to 4 minutes on, repeated 4 to 5 times) to prevent runoff.
A Rain Bird valve stuck open does not follow your watering schedule. It runs whenever the supply is on, burning through water on non-watering days.
Lubbock code specifically lists leaking valves, broken heads, leaking pipes, misting from excessive pressure, and significant runoff as prohibited conditions. Systems with leakage or excessive discharge must be shut down pending repair. If a Rain Bird valve won’t close, turn off the irrigation shutoff first. Then schedule repair before your next watering day.
When to Call a Professional
Some Rain Bird sprinkler valve repairs are within a capable homeowner’s reach: tightening a loose bleed screw, flushing debris, swapping a diaphragm on a known model. These are reasonable tasks if you shut off water first and use correct parts.
Call an irrigation professional when:
Water keeps running after the controller is unplugged
The valve box is full of water and you can’t identify the source
The valve body or manifold needs to be cut out
A backflow assembly or master valve is involved
Multiple zones fail together
Wiring is corroded, chewed, or hard to trace
You’ve replaced the diaphragm and solenoid and symptoms persist
The valve model can’t be identified
There’s possible code exposure from leaks, runoff, or broken components
In a Lubbock Reddit thread about finding sprinkler repair, homeowners specifically valued providers who respond quickly, show parts costs, explain the problem plainly, and avoid pressuring upsells. That is the right instinct when choosing a contractor.
M&M Sprinklers serves Lubbock and West Texas with valve, solenoid, controller, wiring, and leak repairs, plus backflow testing through Texas-licensed BPAT capability. Call (806) 794-1300 or email contact@mmsprinklerslbk.com for a diagnosis.
After the Repair: Preventing Repeat Problems
A successful Rain Bird sprinkler system valve repair doesn’t end when the zone turns on again. A few habits prevent repeat failures:
Flush the system after any pipe work or disassembly. Debris from repairs is a leading cause of the next valve failure.
Use waterproof direct-bury connectors on all wire splices. Twisted, taped wires in a wet valve box are a future callback.
Keep valve boxes accessible. Don’t bury them under mulch or landscape fabric.
Run each station manually at the start of each season and watch for leaks or weak zones.
Program conservatively. Follow Lubbock’s two-day schedule with cycle-and-soak intervals, and make sure rain and freeze sensors are connected.
EPA WaterSense notes that homes with automatic irrigation can use 50% more water outdoors than homes without. A seeping valve wastes water around the clock, even when no zone is scheduled.
For long-term protection, flow monitoring systems can alert you to breaks or clogs before they become visible problems.
Frequently Asked Questions
What is the most common Rain Bird sprinkler valve repair?
Cleaning debris, replacing a worn diaphragm, or replacing a bad solenoid. In many cases, flushing the valve through the bleed screw and tightening loose components resolves the issue without new parts.
Why won’t my Rain Bird valve shut off?
Possible causes include a loose bleed screw, a solenoid left in manual-on position, debris on the diaphragm seat, a torn diaphragm, a stuck solenoid plunger, or a controller still sending power. If unplugging the controller stops the water, the problem is electrical. If water keeps running, the problem is mechanical.
Why does my Rain Bird zone work manually but not from the controller?
This points to the solenoid, wiring, or controller output rather than the diaphragm. Check that the controller sends 24 to 30 volts during Manual Start, that the station wire and common wire are intact, and that the solenoid clicks when energized.
Can I replace just the diaphragm without replacing the whole valve?
Yes, if you know the valve model and the body, seat, and solenoid are in good condition. Use the model-specific diaphragm kit. Parts are not interchangeable across Rain Bird valve families.
Are Rain Bird valve parts interchangeable between models?
No. A DV/DVF diaphragm will not fit an HV/HVF or CP/CPF valve. Solenoid part numbers also differ by family. Identify your valve model from markings on the body before ordering.
Is water dripping from my lowest sprinkler head a valve problem?
Not always. Temporary low-head drainage can occur after shutdown, especially on slopes. If the dripping stops after residual water clears, the valve is probably fine. Continuous dripping suggests the valve is seeping and needs inspection.
How much does Rain Bird valve repair typically cost?
National data from Angi puts valve repair or replacement between $75 and $300, with overall sprinkler repairs averaging around $278. Local costs depend on access, digging, parts, wiring condition, and whether the body needs to be cut out. For a Lubbock-specific diagnosis, contact M&M Sprinklers at (806) 794-1300.
