Solenoid in Irrigation System: What It Is (2026 Guide)

TL;DR

A solenoid in an irrigation system is a small electromagnetic coil mounted on top of a valve that opens and closes water flow when your controller sends a signal. Each zone in your sprinkler system has one. When a solenoid fails, the zone either won’t turn on at all or won’t shut off, wasting water. Most solenoids run on 24V AC, and a healthy one reads between 20 and 60 ohms on a multimeter.

The Quick Definition

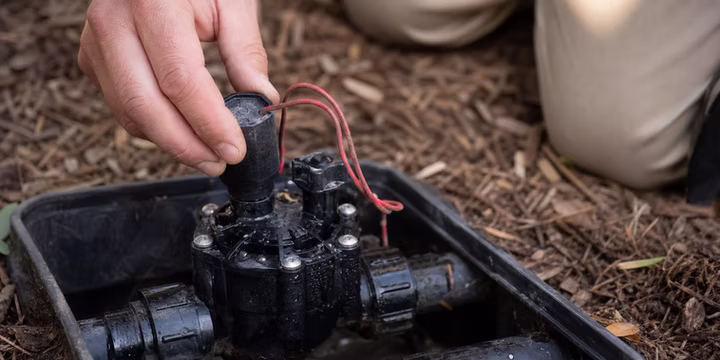

A solenoid in an irrigation system is a coil of wire wrapped around a metallic core that sits on top of a sprinkler valve. When your irrigation controller sends a low-voltage electrical signal (typically 24V AC), the coil generates a magnetic field that lifts a small plunger. This opens the valve and lets water flow to that zone’s sprinkler heads.

Think of it this way: your controller is the brain of the system, but the solenoid is the hand that actually opens the gate. Without a functioning solenoid, the controller can send signals all day long and nothing happens.

Every zone in your sprinkler system has its own solenoid valve, and each one connects back to the controller through a dedicated wire plus a shared common wire. When the controller tells zone 3 to run, it sends voltage down zone 3’s wire, the solenoid activates, and water flows only to that zone’s heads.

If you’re already dealing with a zone that won’t come on, our sprinkler system troubleshooting guide walks through the full diagnostic process.

How a Solenoid Works in Your Sprinkler System

This is where most explanations get it wrong. The solenoid does not directly open a large valve. It opens a tiny pilot hole, and water pressure does the rest.

Here’s the actual sequence:

1. Controller sends 24V AC to the solenoid coil through the station wire and common wire.

2. The coil creates a magnetic field that pulls a small plunger upward, off a pilot port.

3. Water pressure drops in the chamber above the valve’s diaphragm because water escapes through the now-open pilot hole.

4. The diaphragm lifts. With less pressure pushing down from above and full pressure pushing up from below, the diaphragm moves off its seat.

5. Water flows through the valve body and out to the sprinkler heads in that zone.

This pilot-operated design is clever engineering. The solenoid only needs enough force to move a tiny plunger, but it controls a valve handling gallons per minute. According to Hunter Industries’ technical documentation, the surface area that water contacts on top of the diaphragm is greater than the surface area on the bottom, which is why the valve stays firmly closed until the solenoid releases that upper-chamber pressure.

The Fail-Safe Design

Irrigation solenoid valves are “normally closed,” meaning they need power to open but not to close. If your controller loses power during a watering cycle, every solenoid immediately de-energizes. The spring pushes the plunger back down, the pilot port seals, pressure rebuilds above the diaphragm, and the valve closes on its own.

This matters. It means a power outage won’t leave your sprinklers running all night.

Wiring Basics

The wiring is simpler than most people expect. One wire per solenoid runs to its corresponding station terminal on the controller. A single common wire (usually white) connects all solenoids back to the controller’s common terminal. The solenoid wires are not polarity-sensitive, so it doesn’t matter which of the two leads you attach to the common and which to the station wire.

For more on how the wiring works and common wire problems, see our sprinkler wire repair guide.

Key Solenoid Specs Every Homeowner Should Know

You don’t need to be an electrician, but knowing a few numbers helps you diagnose problems and buy the right replacement parts.

Operating voltage: The standard for wired residential systems is 24V AC. Hunter’s common 606800 solenoid, for example, has a minimum opening voltage of 19 VAC and a maximum recommended voltage of 28 VAC. Battery-operated controllers use 9V DC latching solenoids instead, which receive a quick pulse to open and another pulse to close rather than needing continuous power.

Current draw: A typical 24V AC solenoid draws about 350 mA of inrush current when it first activates, then settles to roughly 190 mA holding current. This is why controllers have a limit on how many zones can run simultaneously.

Why AC and not DC? This is a question that trips up even technically minded homeowners. The solenoid coil has very low resistance (often 24 to 32 ohms). If you applied 24V DC across a 24-ohm coil, Ohm’s law says you’d draw a full amp, which would overheat and burn the coil. As Ray’s Hobby blog explains through bench measurements, the key is that AC power interacts with the coil’s inductance to create reactance. This limits the actual current to safe levels. The coil’s resistance alone doesn’t tell the whole story.

Diagnostic Resistance Table

If you own a multimeter, this table is your cheat sheet:

Most Rainbird and Hunter residential solenoids read between 24 and 53 ohms when functional. If you want the full testing procedure, our guide on how to test a sprinkler solenoid with a multimeter covers it step by step.

Types of Solenoids in Irrigation Systems

Not all solenoids are identical. The differences matter when you’re shopping for a replacement or understanding why your system behaves a certain way.

Normally Closed vs. Normally Open

Normally closed (NC) solenoids are the standard in almost every residential and commercial irrigation system. The valve stays shut when the solenoid is unpowered. Water only flows when the controller actively sends a signal. This is the safe default for landscape irrigation.

Normally open (NO) solenoids are the opposite: water flows freely until the solenoid energizes to close the valve. These are rare in landscape irrigation and typically reserved for industrial applications where continuous flow is the default state.

AC Solenoids vs. DC Latching Solenoids

Standard wired systems use 24V AC solenoids that need continuous power to hold the valve open. The moment power stops, the valve closes.

Battery-operated controllers can’t afford to send continuous power (the batteries would die in hours), so they use DC latching solenoids. These receive a brief pulse to latch open and another brief pulse to unlatch and close. The valve stays in whatever position it was last set to, consuming zero power in between.

Valve Types That House Solenoids

The solenoid itself is a universal component, but it sits on different valve bodies depending on the installation:

Anti-siphon valves integrate a backflow prevention device directly above the valve body. They must be installed above ground, at least 6 inches higher than the highest downstream sprinkler head. These are common in residential installations across North America.

Inline globe valves are the standard in professional systems. They can be buried in valve boxes underground, which protects them from weather and keeps them out of sight. If your valves are in a green rectangular box in your yard, they’re almost certainly inline globe valves with solenoids on top.

Signs Your Solenoid Has Gone Bad

A bad solenoid in an irrigation system announces itself through a handful of recognizable symptoms:

Zone won’t turn on. The controller runs through its program, but one zone produces no water. This is the most common symptom, though the cause isn’t always the solenoid itself.

Zone won’t shut off. A solenoid that sticks in the open position keeps water flowing after the controller moves to the next zone or finishes the cycle. If you notice a zone running when it shouldn’t be, the solenoid plunger may be stuck. Learn more about other sprinkler issues that can mimic solenoid failure.

Buzzing or clicking from the valve box. You can sometimes hear a plunger buzzing when the applied voltage is too low. The plunger starts to lift, falls back, lifts again, falls back, creating a rapid clicking. This can indicate a wiring problem reducing voltage to the solenoid or debris preventing the plunger from fully engaging.

Valve body hot to the touch. If the solenoid coil is electrically shorted, it draws excessive current and generates heat. A warm valve body during operation is a red flag for an electrical short.

Weak water pressure in a single zone. A solenoid that only partially opens won’t allow full flow. The zone runs, but heads barely pop up and coverage is poor. Our low water pressure guide covers the full range of pressure causes.

What Causes Solenoid Failure?

Solenoids don’t last forever. Understanding the failure modes helps you prevent them or at least recognize what happened.

Electrical Causes

Voltage spikes from lightning strikes or power surges can burn out a solenoid coil instantly. A burnt coil cannot be repaired. You’ll need a new solenoid.

Corroded wire connections are the most underappreciated cause of solenoid problems. Practitioners in the Sprinkler Warehouse training series emphasize that the majority of valve problems trace back to bad wiring, not bad solenoids. Homeowners who skip straight to replacing a solenoid often discover the real culprit was corroded wire nuts buried in a wet valve box. Always use silicone-filled connectors (grease caps) for underground wire splices.

Mechanical Causes

Sediment and debris can lodge in the solenoid’s pilot port or around the plunger. Even small particles prevent the plunger from seating properly, which stops the valve from fully opening or closing. The system overheats trying to compensate, which accelerates damage to internal components.

Environmental Causes

Hard water mineral buildup is a major factor in West Texas. Lubbock’s municipal water comes from the Ogallala Aquifer and is notoriously mineral-rich. Calcium and magnesium deposits gradually coat the solenoid’s internal surfaces, gumming up the plunger. This can prevent the valve from opening fully (starving your plants) or from closing properly (wasting water). In a semi-arid climate where every gallon counts, a stuck-open solenoid can waste hundreds of gallons before anyone notices.

Lime dust accumulates in solenoid valves in hard water systems, often causing them to malfunction or preventing them from shutting off properly. Periodic valve cleaning, where you remove the solenoid and flush the valve body, extends the life of irrigation solenoids significantly in hard water areas.

Water intrusion on the coil is another environmental killer. If water contacts the coil’s electrical components directly, it can short out the coil instantly. Proper waterproof wire connectors and keeping the solenoid above the water line inside the valve box both help.

Heat stress matters in West Texas, where summer temperatures regularly exceed 100°F. Buried valve boxes trap heat around solenoids, and prolonged exposure to extreme temperatures degrades the coil’s insulation over time.

Age

A well-maintained solenoid in an irrigation system typically lasts between 5 and 15 years. Valves overall last 10 to 15 years depending on usage, water quality, and environmental conditions. Practitioners from a Tulsa-area irrigation company note that solenoids on systems 15 to 20 years old are reaching the end of their reliable service life, and a solenoid testing at the high end of the resistance range (50 to 80 ohms) is approaching failure. Replacing it proactively before it fails mid-season saves you from dead zones during peak heat.

If you’re noticing signs your sprinkler system needs repair, aging solenoids are one of the first components worth checking.

How to Diagnose a Solenoid Problem

Experienced irrigation techs don’t start with a multimeter. They start with the manual bleed test. Practitioners on Reddit’s r/Irrigation forum consistently recommend this approach: open the suspect valve manually (via the bleed screw on top of the valve) to confirm the mechanical components work. If water flows when you open the bleed screw, the valve internals, including the diaphragm and spring, are fine. The problem is electrical, either in the wiring or the solenoid itself.

A practitioner on Quora who has repaired sprinkler systems for years echoed this, saying he practically never uses a multimeter as a first step. The manual bleed test takes 30 seconds and immediately separates mechanical failures from electrical ones.

If the bleed test confirms the mechanical side works, then you move to the multimeter. Disconnect the solenoid wires from the field wiring and test resistance across the two solenoid leads. Refer to the diagnostic table above. If the reading falls outside the 20 to 60 ohm range, replace the solenoid.

If the solenoid tests fine in isolation but the zone still won’t run from the controller, the problem is upstream in the wiring, most likely corroded connectors or a damaged wire between the controller and the valve box.

Solenoid Replacement: DIY vs. Professional

Replacing just the solenoid (not the entire valve) is one of the more approachable DIY irrigation repairs. The solenoid unscrews from the valve body, and the new one screws right back in. Reconnect the two wires with waterproof connectors, and you’re done.

Parts cost: A replacement solenoid typically runs $15 to $50 depending on the brand and model. If you’re working with an Irritrol system, our Irritrol 2400T solenoid replacement guide walks through the brand-specific steps.

When to call a professional: Multiple zones failing simultaneously usually points to a controller or common wire problem rather than individual solenoids. Wiring issues buried underground require locating and repairing splices that may be 12 inches deep in a valve box full of mud. If your system is 15 or more years old, a single solenoid failure may be the first domino. A professional inspection of the entire system catches other components that are close behind.

And remember the key insight: it’s probably not the solenoid. Wiring problems are misdiagnosed as solenoid failures more often than most homeowners realize. Before you buy a replacement part, test the wiring first.

For a full walkthrough, see our solenoid replacement guide.

How Solenoids Connect to Smart Irrigation

Smart controllers like the Hunter X2 with Hydrawise still use standard 24V AC solenoids. The “smart” part happens at the controller level, with weather-based scheduling, remote access via smartphone, and flow monitoring. The solenoid itself is the same electromagnetic component it has always been.

Where smart systems add real value for solenoid longevity is flow monitoring. A flow sensor at the water meter can detect when a solenoid sticks open (flow continues after a zone should have stopped) or fails to open (no flow detected when a zone starts). The system alerts you immediately instead of letting the problem go unnoticed for days or weeks.

Weather-based automation also reduces unnecessary valve cycles. Fewer cycles mean less wear on the solenoid plunger and diaphragm, which translates to longer component life. For more on what makes an irrigation system “smart,” check our smart irrigation glossary and checklist.

Why Solenoid Health Matters More in West Texas

In a region where annual rainfall averages around 18 inches and summer temperatures push past 100°F for weeks at a time, every component in your irrigation system carries outsized importance. A solenoid failure in Portland, Oregon is an inconvenience. A solenoid failure in Lubbock during July can mean dead turf within days.

The combination of hard water from the Ogallala Aquifer and extreme heat creates a uniquely hostile environment for irrigation solenoids. Mineral deposits build up faster, coil insulation degrades faster, and the consequences of a malfunction, whether stuck open or stuck closed, are more severe.

Proactive maintenance makes a measurable difference here. Annual valve inspections, flushing sediment from valve bodies, checking wire connections for corrosion, and replacing aging solenoids before they fail mid-season all reduce the risk of costly landscape damage during peak demand.

If you’re looking for professional help with solenoid issues or a full system evaluation in the Lubbock area, M&M Sprinklers’ repair services cover diagnostics, valve work, and wiring repairs across West Texas.

Frequently Asked Questions

How do I know if my sprinkler solenoid is bad?

Start with the manual bleed test. Open the bleed screw on top of the valve. If water flows normally, the valve mechanics are fine and the problem is electrical. Next, disconnect the solenoid wires and test resistance with a multimeter. A healthy solenoid reads between 20 and 60 ohms. A reading near zero indicates a short, and infinite resistance indicates an open coil. Either way, replacement is needed.

Can I replace a solenoid without replacing the whole valve?

Yes. The solenoid screws into the top of the valve body and is a separate, replaceable component. You don’t need to cut pipe or dig up the valve. Just unscrew the old solenoid, screw in the new one, and reconnect the two wires with waterproof connectors.

How long does an irrigation solenoid last?

Typically 5 to 15 years. Water quality, usage frequency, and environmental conditions all affect lifespan. In hard water areas like Lubbock, solenoids tend to fail sooner due to mineral buildup on internal surfaces.

What voltage does a sprinkler solenoid use?

The standard is 24V AC for wired systems. Battery-operated controllers use 9V DC latching solenoids that consume a brief pulse to change state rather than drawing continuous power.

Why is my sprinkler solenoid buzzing?

Buzzing usually means the solenoid is receiving insufficient voltage. The plunger starts to lift but can’t fully engage, so it vibrates rapidly. Common causes include corroded wire connections reducing voltage, a failing transformer in the controller, or debris partially blocking the plunger.

Is the solenoid usually the problem when a zone won’t run?

Not as often as you’d think. Experienced technicians report that wiring problems (corroded connections, damaged wire runs, bad grease caps) cause more zone failures than solenoids do. Always check the wiring before assuming the solenoid is at fault.

How much does it cost to replace a sprinkler solenoid?

The solenoid part itself costs $15 to $50. If you hire a professional, expect to pay for 1.5 to 2 hours of labor on top of the part. Total professional replacement costs for a single solenoid typically range from $75 to $200 depending on accessibility and whether additional wiring repairs are needed.

Do solenoid wires have polarity?

No. The two wire leads on an irrigation solenoid are not positive or negative. It doesn’t matter which wire connects to the common and which connects to the station terminal. Either orientation works.
