Above-Ground Backflow Preventer: 2026 Complete Guide

When it comes to protecting your drinking water, a backflow preventer is a non negotiable safety device. It acts as a one way gate, ensuring that contaminated water from your irrigation system or other sources never flows backward into your clean water supply. But where you install this crucial device is just as important as having one.

For years, the old school method was to bury them in underground vaults. Today, the clear best practice for safety, cost, and maintenance is the above-ground backflow preventer. Let’s explore why bringing your backflow assembly out of the pit and into the open is the smart choice for any property owner.

Why an Above-Ground Backflow Preventer is the Modern Standard

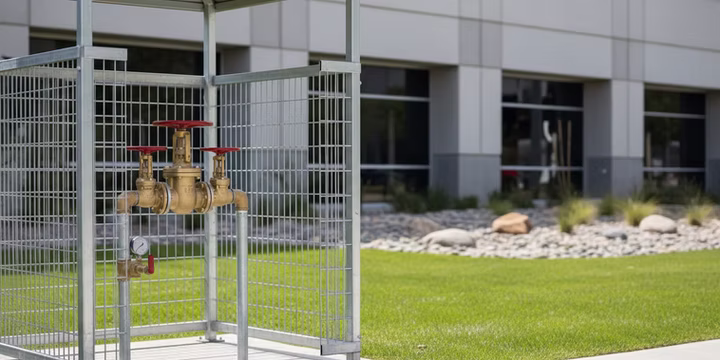

An above-ground backflow preventer is a backflow prevention assembly installed above grade, often on a concrete pad and protected by a special enclosure. Unlike a buried valve, it’s visible and accessible, which is exactly what you want for a critical safety device. The benefits are significant.

• Dramatically Safer Access: Technicians can service an above ground unit without entering a confined space. Underground vaults are classified as confined spaces by OSHA, requiring special permits, training, and safety equipment to enter. With dozens of confined space fatalities reported annually, this is a risk you can completely avoid with an above ground setup.

• Lower Risk of Contamination: Placing the assembly above ground prevents it from being submerged in groundwater. When a below grade vault floods, which is common, the backflow device’s test cocks can become covered in dirty water. This creates a scenario where the very device meant to protect your water could draw contaminated water into your clean supply.

• Easier Upkeep and Lower Costs: An above-ground backflow preventer sits on a simple concrete pad, avoiding the major excavation and construction needed for a vault. This results in a lower installation cost. The long term savings are even more impressive. Servicing a vault can cost up to $5,000 per year for pumping, cleaning, and safety compliance, while an above ground enclosure needs minimal upkeep. In one documented case, a water district saved around $60,000 by switching from vaults to above ground enclosures.

Because of these clear advantages, many manufacturers now prohibit installing certain types of backflow assemblies, like the common RPZ valve, below grade.

The Hidden Dangers of Underground Backflow Vaults

While hiding a backflow preventer in an underground vault might seem appealing for aesthetic reasons, it creates far more problems than it solves. This outdated approach introduces serious risks.

• Confined Space Hazards: A vault is a regulated confined space, making any entry for inspection or repair a heavily regulated and expensive process. A single visit can cost thousands of dollars in compliance measures. Tragically, serious injuries and even deaths have occurred in utility vaults.

• Constant Threat of Flooding: Vaults naturally collect rainwater, irrigation runoff, and groundwater. A flooded vault submerges the assembly, a hazardous situation that violates plumbing codes. This can allow lawn chemicals, oil, or animal waste from the surrounding soil to be siphoned directly into your drinking water through the test ports.

• Accelerated Equipment Damage: Constant moisture in a vault causes accelerated corrosion, rotting gaskets, and peeling epoxy coatings on the backflow preventer. This leads to premature failure. Furthermore, underground vaults offer no real freeze protection, as the walls provide little insulation against a cold snap.

• Serious Liability Issues: An unmarked vault on a property is a serious liability. People have been injured by unknowingly opening a lid and falling in. In the event of an injury or death, the property owner and even the installer could face significant legal consequences.

How to Properly Install an Above-Ground Backflow Preventer

A proper installation ensures your above-ground backflow preventer works correctly, passes inspection, and is easy to service for years to come.

Following Local Installation Guidelines

Always start by consulting your local jurisdiction’s standard detail for backflow installations. A jurisdiction standard detail is an official diagram from your city or water district that provides the blueprint for a compliant setup. It specifies everything from height and clearance to the type of enclosure required. Following this detail ensures you meet local codes and pass inspection the first time. Need help navigating Lubbock’s requirements? See our Lubbock backflow testing guide, and the certified team at M&M Sprinklers is familiar with all local codes and can ensure your installation is fully compliant.

Getting the Height Just Right

Plumbing codes set specific installation height requirements for a backflow preventer. These rules balance flood safety with easy maintenance access.

• Minimum Height: The device should be at least 12 inches above the ground or any potential flood level. This gap is critical to prevent contaminated puddle water from being siphoned back into your clean supply line.

• Maximum Height: The assembly should not be installed more than 5 feet high. This ensures a certified tester can safely reach the valves and test cocks without needing a ladder.

Most installers aim for a sweet spot between 12 and 36 inches off the ground, which is perfect for both function and serviceability.

Creating a Solid Foundation with Concrete Pad Mounting

A concrete pad mounting is the standard and best practice for any above-ground backflow preventer. A small concrete slab provides a stable, level surface that keeps the assembly secure and protected from ground moisture. It prevents the piping from sagging or shifting over time and gives a solid base for anchoring a protective enclosure. This simple step replaces the massive cost and effort of building an underground vault.

Protecting Your Backflow Preventer from the Elements

An outdoor above-ground backflow preventer is exposed to weather, so protecting it is essential, especially from freezing temperatures here in West Texas. Pairing your system with a rain/freeze sensor can also help prevent watering before a hard freeze.

Essential Freeze Protection for West Texas Winters

If water inside the backflow preventer freezes, the expanding ice can crack the brass body or destroy internal components. A cracked device is not only an expensive repair but also a direct path for contamination. The two main strategies for freeze protection are insulation and winterization. For a step‑by‑step seasonal plan, see our Fall irrigation maintenance and winterize checklist. For our climate, a combination of both is the safest bet.

Winterization Steps for Your Backflow Preventer

Winterization is the process of preparing your system for winter by draining all the water out of the backflow preventer and pipes. A professional winterization service typically involves these steps:

1. Shut off the water supply to the irrigation system.

2. Open the test cocks and drain valves to let water out.

3. Use compressed air to blow out any remaining water trapped in low spots or inside the check valves.

4. Leave the ball valves half open (at a 45 degree angle) as an extra precaution, giving any residual ice room to expand.

5. Protect the assembly with an insulated cover for the winter months. If a freeze cracks a component or you notice sudden water discharge, use the shut‑off valve and check our emergency sprinkler repair guide.

Choosing the Right Protective Enclosure

A high quality enclosure is the best way to shield your above-ground backflow preventer from freezing, sun damage, and vandalism. They come in various materials, each with its own pros and cons.

• Insulation Bag: An insulation bag or pouch is a simple and effective way to protect against light frost. These padded, water resistant covers slip over the assembly. For a sudden cold snap, you can even create a temporary one by wrapping the device in blankets and covering it with a plastic bag to keep it dry.

• Aluminum: An aluminum backflow enclosure is a popular choice for its lightweight, durable, and corrosion resistant properties. Quality enclosures use marine grade aluminum and can be insulated and heated to provide excellent freeze protection.

• Stainless Steel: For maximum durability and security, a stainless steel backflow enclosure is an excellent option. It’s heavier and more expensive than aluminum but offers superior resistance to impact and corrosion, making it ideal for high risk areas.

• Carbon Steel: A carbon steel backflow enclosure is a strong, budget friendly option, but it must be galvanized or powder coated to prevent rust. These are often seen as open air security cages.

• HDPE and Fiberglass: Enclosures made from high density polyethylene (HDPE) or fiberglass are completely rust proof and lightweight. They offer good insulation but can be less secure than their metal counterparts.

• Plastic and Fake Rock Covers: A general plastic backflow enclosure or a decorative fake rock cover can offer aesthetic appeal and basic protection from sun and rain. However, they typically provide minimal security and insulation. Fake rocks in particular are known to attract thieves, who see them as “welcome mats” for valuable brass components.

• Cage Enclosures: A backflow cage enclosure is made of metal bars and is designed purely for security against theft and vandalism. A cage offers zero freeze protection on its own and may not stop a determined thief with power tools.

Understanding ASSE 1060: The Gold Standard for Enclosures

When selecting an enclosure, look for one that is certified to the ASSE 1060 performance standard. This standard ensures the enclosure meets strict requirements for freeze protection, structural integrity, drainage, and security.

• Class 1: Provides freeze protection, keeping the internal temperature at 40°F even when it’s -30°F outside (with a proper heater). This is the recommended class for regions with harsh winters.

• Class 2: Offers frost protection (insulated but not heated) for areas where temperatures rarely fall below freezing.

• Class 3: Non insulated, providing only physical and security protection.

An ASSE 1060 enclosure must also withstand a 20 pound weight dropped on its lock and support a load of 100 pounds per square foot.

The Role of a Slab Heater in Freeze Prevention

For true Class 1 freeze protection, an enclosure needs a heater. A slab heater is a heating element installed on the concrete pad at the base of the enclosure. It provides gentle, uniform heat from the bottom up. Because warm air rises, this is the most effective way to keep the entire assembly safe. These heaters are thermostatically controlled and are certified for wet locations, meaning they can operate safely even if the backflow device discharges water. Not sure what’s right for your site? Ask about our sprinkler maintenance plans that include freeze‑readiness checks and enclosure heater inspections.

Long Term Care and Smart Placement

Proper placement and ongoing maintenance are key to the longevity and effectiveness of your above-ground backflow preventer.

Site Placement and Screening for a Clean Look

Where you place your backflow assembly matters for both function and aesthetics. It should be located near the water source but away from vehicle traffic or low spots that flood. Many HOAs require screening the device from public view, which can be done with landscaping like shrubs or a small fence. Just be sure to leave a clear path for a technician to access the unit for annual testing.

Ensuring Easy Access for Maintenance and Testing

Your backflow preventer requires annual testing by a certified technician to remain compliant with city codes. Therefore, you must ensure easy access.

• Provide at least 1 foot of clearance on all sides of the device for tools and equipment.

• If using an enclosure, make sure its doors or panels are easy to open and can be secured in an open position.

• Keep the area clear of dense bushes, debris, or other obstructions.

If you have questions about your system or need your annual certification, M&M Sprinklers provides professional backflow testing in Lubbock and the surrounding West Texas area.

Security and Vandalism Protection

Backflow assemblies contain valuable brass and are often targets for theft. The best security is a sturdy, locked enclosure. An ASSE 1060 certified enclosure is designed to resist tampering. A flimsy plastic cover or fake rock offers almost no security against a determined thief.

Special Drainage Needs for RPZ Valves

A Reduced Pressure Zone (RPZ) backflow preventer is designed to discharge water through a relief valve as part of its normal operation. When installing an RPZ, you must plan for this drainage. For an outdoor above-ground backflow preventer, this usually means placing it over a gravel bed or ensuring the enclosure has adequate drain ports to let water escape. An RPZ can discharge a significant amount of water, so proper drainage prevents pooling, erosion, and potential flooding. For new builds or retrofits, see our irrigation system design guide for drainage planning best practices.

Final Thoughts

Choosing an above-ground backflow preventer is one of the smartest decisions you can make for your property. It’s safer for technicians, less prone to contamination, more cost effective to install and maintain, and the undisputed modern standard for water safety. By following proper installation guidelines and protecting it from the elements, you ensure this critical device will protect your family’s drinking water for years to come.

For expert advice on installing, testing, or repairing your backflow preventer in Lubbock, contact the licensed professionals at M&M Sprinklers today.

Frequently Asked Questions

1. What is the main purpose of an above-ground backflow preventer?

Its purpose is to prevent contaminated water from sources like irrigation systems or boilers from flowing backward and mixing with the clean, potable water supply. Installing it above ground makes it safer to service and less likely to fail due to flooding.

2. How often does my backflow preventer need to be tested?

Most cities, including Lubbock, require backflow prevention assemblies to be tested by a licensed Backflow Prevention Assembly Tester (BPAT) at least once a year. Testing is also required immediately after installation or any repairs.

3. Can I hide my backflow preventer with a fake rock?

While a fake rock cover can hide the assembly, it offers very little security against theft and minimal protection from freezing. Thieves often target devices under fake rocks. A locked, insulated enclosure is a much safer option.

4. What is an RPZ backflow preventer?

An RPZ (Reduced Pressure Zone) is a type of backflow preventer that provides the highest level of protection. It has a relief valve that will discharge water if it detects a backflow condition, which is why proper drainage planning is essential for any RPZ installation.

5. Is it expensive to install an above-ground backflow preventer?

While there is an initial cost, an above ground installation is typically much cheaper than constructing an underground vault. It saves thousands of dollars in excavation, construction, and long term maintenance costs associated with confined space entry and pump outs.

6. Do I need a heater in my backflow enclosure in West Texas?

Yes, a heated enclosure (ASSE 1060 Class 1) is highly recommended. While our winters can be mild, we experience sudden and severe freezes. An insulated enclosure with a thermostatically controlled slab heater provides the most reliable protection and prevents costly freeze damage.
