How to Perform Sprinkler System Wire Repair (2026 Guide)

When a sprinkler zone suddenly stops working, it’s easy to assume the worst, like a major plumbing leak. But often, the culprit is something much smaller and hidden underground: a problem with your sprinkler system wiring. These low voltage cables are the nervous system of your irrigation setup, and when they fail, the communication between your controller and your valves breaks down. A successful repair involves using a multimeter to diagnose the electrical fault, locating the break or short in the line, and splicing the wires with waterproof connectors.

This guide walks you through everything you need to know about sprinkler system wire repair, from identifying the signs of a problem to making a lasting fix. Whether you’re a hands on homeowner or just want to understand what a professional is looking for, you’ll find the answers here.

The Nervous System of Your Lawn: What Sprinkler Wires Do

So, what is the purpose of these wires? Put simply, sprinkler wires carry the electrical signals that automate your irrigation system. Your controller, or timer, is the brain. When it’s time to water a specific zone, it sends a low voltage 24 volt AC signal down a dedicated wire to a specific valve.

This signal energizes an electromagnetic coil on the valve, called a solenoid (solenoid replacement guide), which opens the valve and lets the water flow. The entire network relies on a few key components:

• The Controller: The timer that schedules watering and sends the electrical signals.

• Irrigation Wire: A multi conductor, direct burial cable that runs from the controller to the valve boxes. It contains one common wire (usually white) and several colored wires, one for each zone.

• Solenoid Valves: The “muscles” of the system. Each valve has a solenoid that receives the signal to open and close.

Without this electrical connection, your automatic system is just a collection of pipes. A successful sprinkler system wire repair restores this vital communication line.

Spotting the Telltale Signs of a Wiring Issue

How can you tell if the problem is electrical and not a broken sprinkler head or a clogged pipe? Electrical faults have some classic symptoms.

• One Zone Won’t Turn On: If all your other zones work perfectly but one is completely dead, it often points to a cut wire or a failed solenoid for that specific zone.

• The Entire System is Down: If no zones will activate but the controller has power, the common wire could be broken. Since all valves share this wire, a single break in it can shut everything down.

• Controller Shows an Error: Many modern controllers are smart enough to detect electrical faults. See our irrigation controller repair guide for common codes and fixes. You might see a “FAULT,” “ERR,” or a blinking light on the display, often indicating a short circuit.

• A Zone is Stuck On: While sometimes a mechanical issue, a zone that won’t shut off can be caused by a shorted circuit or a malfunctioning controller sending continuous power.

• Fuses Keep Blowing: If your controller has a fuse and it blows every time a certain zone tries to run, that’s a sure sign of a short circuit in that zone’s wiring or solenoid.

Before You Dig In: Essential Safety Precautions

Even though sprinkler systems use low voltage, safety is paramount. Before you touch any wires or components, follow these two critical steps:

1. Turn Off the Power: Unplug your sprinkler controller or switch off the corresponding circuit breaker. Make sure the controller’s screen is completely blank before you proceed.

2. Shut Off the Water: Turn off the main water supply to your irrigation system, often at the backflow preventer. If you need help locating or certifying it, schedule backflow testing in Lubbock. This prevents any accidental water spray while you’re working on the valves or solenoids.

Always work with dry hands and tools, and clear any standing water out of valve boxes before you begin. Taking these simple precautions makes any sprinkler system wire repair project much safer. For ongoing peace of mind, consider our seasonal maintenance plans to catch wiring, valve, and coverage issues before peak watering season.

Your Step by Step Guide to Troubleshooting

With the power and water off, you can start your diagnostic work. The key is to be methodical, starting at the controller and working your way out to the valves.

Start at the Brain: Inspecting the Sprinkler Controller

The problem might be right at the source. A quick controller inspection can save you a lot of digging. If your timer is outdated, consider upgrading to a Wi-Fi model for easier diagnostics and alerts. Start with our Wi-Fi sprinkler controller guide.

• Check for Power: If the screen is blank, make sure the outlet has power and check for a tripped GFCI or circuit breaker.

• Inspect the Wiring: Open the wiring panel. Are all the zone wires and the common wire firmly secured in their terminals? A loose wire is a common and easy fix.

• Look for Fuses: Many controllers have a small fuse on the circuit board. If it’s blackened or the filament is broken, it means a short circuit occurred somewhere in the system. A healthy solenoid circuit should read between 20 and 60 ohms.

• Bypass Sensors: If you have a rain sensor, use the bypass switch to make sure a faulty sensor isn’t preventing the system from running, or follow this rain sensor installation how-to to check wiring and placement.

The Right Tools for the Job

For a proper sprinkler system wire repair, having a few key tools and parts makes all the difference.

• Multimeter: This is the most important tool for diagnosing electrical issues.

• Wire Strippers and Pliers: For cutting and preparing wires for new connections.

• Waterproof Wire Connectors: These are non negotiable. Use grease filled or silicone sealed connectors for any underground splice. Standard indoor wire nuts will corrode and fail.

• Spare Irrigation Wire: It’s helpful to have a small amount of direct burial wire for making repairs.

Using a Multimeter to Diagnose Wiring Issues

A multimeter takes the guesswork out of electrical troubleshooting. It allows you to test for voltage, resistance (ohms), and continuity.

• Testing Voltage: With the power on, set your meter to VAC (AC Volts). A healthy controller should send about 24 to 28 volts to an active zone terminal. If you get a zero reading, the controller’s output for that zone might be bad.

• Testing Resistance (Ohms): With the power off, set the meter to Ohms (Ω). This is the best way to check the health of your wiring and solenoids from the controller. A normal reading for a zone (wire path and solenoid) is between 20 and 60 ohms.

• Interpreting the Readings:0–10 Ohms: This indicates a short circuit.20–60 Ohms: A healthy, complete circuit.Infinite or O.L. (Open Line): This means you have a broken wire or a bad solenoid.

Finding a Broken Wire or Short Circuit

If your multimeter reading points to an open circuit (broken wire) or a short, the next step is to find the location of the fault. A break is often caused by digging, lawn aeration, or rodent damage. A short happens when insulation is damaged and two wires touch.

To confirm a wire is broken, you can perform a continuity test. Disconnect the zone and common wires at the valve, twist them together, and then test for resistance between those two terminals at the controller. If it still reads O.L., you’ve confirmed a break in one of the wires.

Is It the Wire or the Valve? Testing Solenoids

Often, what looks like a wiring issue is actually a failed solenoid. You can test it directly at the valve box. Disconnect the solenoid’s two wires from the field wires and measure the resistance across them.

• A good solenoid will read between 20 and 60 ohms.

• An O.L. or infinite reading means the coil is broken internally (open circuit).

• A very low reading (near zero) means the coil is shorted.

In either case of failure, the solenoid needs to be replaced. This is a common and relatively simple part of a sprinkler system wire repair.

Advanced Troubleshooting and Making the Fix

For problems that aren’t obvious, you may need more advanced tools or techniques to complete the sprinkler system wire repair.

Pinpointing the Problem with a Wire Locator

What if you know a wire is broken but have no idea where? Professionals use a tool called a wire locator or cable tracer. This device sends a signal down the wire, and a handheld wand is used to trace the wire’s path underground. The signal will stop abruptly at the point of the break, telling you exactly where to dig. This tool is also invaluable for finding valve boxes that have been buried under years of turf growth.

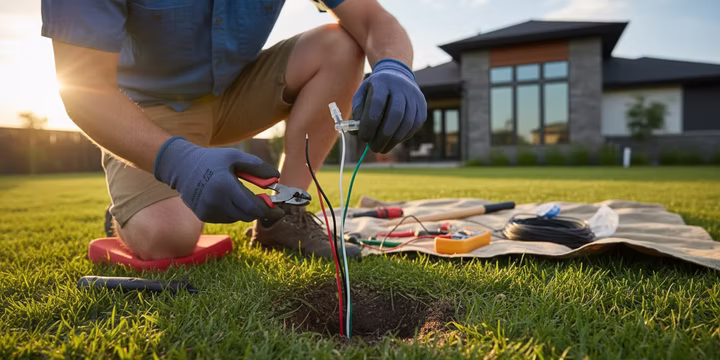

How to Properly Rewire a Damaged Section

Once you’ve found the break, it’s time to make the repair.

1. Expose the Damage: Carefully dig around the wire to give yourself room to work.

2. Cut and Strip: Cut out the damaged section of wire. Strip about 3/4 of an inch of insulation off the ends.

3. Splice Securely: Use a waterproof connector to join the wires. Twist the copper ends together firmly before sealing them inside the grease cap or silicone tube. A good splice is the most critical part of a durable sprinkler system wire repair.

4. Test Before Burying: Before you fill the hole back in, run the zone from your controller to confirm the repair worked.

For larger repairs involving multiple cut wires, it’s best practice to install a small underground junction box (like a valve box) to house the new connections. This keeps them protected and accessible for any future service.

When to Call a Professional for Sprinkler System Wire Repair

While some wiring issues are simple fixes, many can be complex and frustrating to diagnose without the right experience and equipment. You should consider calling a professional if:

• You don’t own or are uncomfortable using a multimeter.

• The problem involves multiple zones or seems intermittent.

• You suspect a wire is broken but can’t find it.

• You’ve tried the basic steps and still can’t solve the issue.

Electrical troubleshooting requires patience, and a professional can often find and fix the problem in a fraction of the time. If you’re in Lubbock or the surrounding West Texas area, the certified team at M&M Sprinklers offers sprinkler repairs in Lubbock with the professional-grade locators and diagnostic experience to handle any sprinkler system wire repair, big or small.

Sprinkler System Wire Repair FAQ

Q: Why did my sprinkler wire break? A: The most common causes are accidental cuts from shovels during landscaping, lawn aeration, or digging for fence posts. Rodents chewing on wires and simple corrosion at a bad splice are also frequent culprits.

Q: Can I use regular wire nuts for sprinkler repairs? A: No, absolutely not. Regular indoor wire nuts are not designed for moisture and will corrode quickly, causing the connection to fail. You must use connectors specifically rated for direct burial or wet locations.

Q: How much does a professional sprinkler system wire repair cost? A: The cost can vary widely depending on the complexity of the problem. A simple solenoid replacement might be relatively inexpensive, while locating and repairing a deep, hard to find wire break will take more time and specialized equipment.

Q: One of my zones is very weak. Could this be a wiring issue? A: Yes, it could be. A corroded or poor wire connection can create high resistance, leading to a voltage drop at the valve. This might cause the solenoid to only partially open, resulting in weak pressure for that zone.

Q: All of my sprinkler zones stopped working at once. What should I check first? A: Check that your controller has power. If it does, the most likely electrical culprit is a break in the common wire, as all zones rely on it to complete the circuit. You can also schedule a system checkup to have a technician diagnose the issue.
