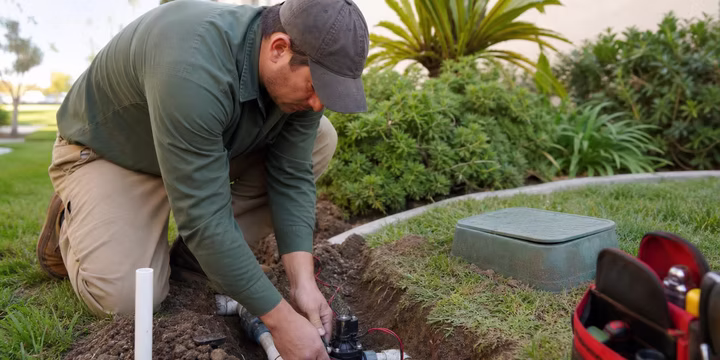

How to Add a New Zone to an Existing Irrigation System | 2026

TL;DR

Adding a new zone to an existing irrigation system involves tapping into your mainline, installing a new valve, running pipe and wire to your controller, and programming the new station. Before you start, you need to verify that your water pressure, flow rate, controller capacity, and available wiring can support the expansion. The job costs between $300 and $1,500 per zone depending on scope, and while capable DIYers can handle it, many homeowners benefit from professional installation.

Why This Project Matters

Every irrigation system is divided into zones for a reason. Each zone is a section of your yard served by a group of sprinkler heads or emitters, all controlled by a single valve. Zones exist because your water supply can only push so much water at a time. Try to run too many heads at once and pressure drops, coverage suffers, and you end up with brown spots.

Adding a new zone to an existing irrigation system is one of the most common upgrades homeowners face. Maybe you cleared a new flower bed. Maybe you finally got tired of dragging a hose across the backyard. One forum user described disconnecting a zone three years ago and manually watering ever since, calling it “not very fun.” Whatever the trigger, understanding the terminology and process before you start digging saves time, money, and frustration.

If you’re in the Lubbock area and want a professional assessment before starting, M&M’s irrigation team can evaluate your system’s capacity and recommend the best approach.

Understanding Your Irrigation System: Core Terms

Before you can add a zone to an irrigation system, you need to speak the language. These are the foundational terms that show up in every installation guide, forum thread, and product manual.

Zone (Irrigation Zone / Sprinkler Zone)

A zone is a designated area that receives water from a specific set of sprinkler heads, all controlled by one valve. Your system activates zones one at a time (or sometimes two, if flow allows) to manage water pressure and ensure adequate coverage. Zones aren’t arbitrary. They exist because of hydraulic constraints, meaning limits on water pressure, flow rate, or head type. A system that tries to water everything simultaneously would have terrible pressure and uneven coverage.

Valve / Control Valve / Solenoid Valve

Each zone has its own valve, which is essentially an electronically controlled gate. When your controller sends a signal, the solenoid (a small electromagnetic coil on top of the valve) opens the valve, allowing water to flow to that zone’s heads. When the signal stops, the valve closes. If you’re adding a new zone, you’re adding a new valve. For more on diagnosing valve problems, that’s a separate but related topic.

Manifold (Valve Manifold)

A manifold is where multiple valves sit together, connected to the mainline water supply. Think of it as a hub. In most residential systems, you’ll find the manifold in a valve box (a green rectangular lid in your yard). When adding a new zone, you may need to add a valve to an existing manifold or create a new valve location. Practitioners on The Lawn Forum frequently share manifold photos showing exactly how additional valves get plumbed in.

Mainline vs. Lateral Line

The mainline is the pressurized pipe that runs from your water source (after the backflow preventer) to the valve manifold. It’s always under pressure when the system is on. Lateral lines branch off from each valve and carry water to the individual sprinkler heads in that zone. They’re only pressurized when their valve opens.

This distinction matters because when you add a zone, you tap into the mainline (before any valve) to supply your new valve. If you mistakenly tap into a lateral line, your new zone will only work when the existing zone sharing that lateral is also running.

Controller / Timer / Clock

The controller is the brain of your system. It tells each valve when to open and for how long. “Controller,” “timer,” and “clock” all refer to the same device. Each connection point on the controller is called a station, and each station controls one zone. Station 1 controls Zone 1, Station 2 controls Zone 2, and so on.

Common Wire

The common wire (usually white) is a shared ground wire that connects all zone valves back to the controller’s “C” or “COM” terminal. Every valve needs two wires: one dedicated zone wire and the shared common wire. This is a detail many beginners overlook.

Why Add a Zone? Common Triggers and When It’s Not the Answer

Reasons Homeowners Add Zones

The most common scenarios that lead to adding a new zone to an existing irrigation system include:

Landscape expansion. You added a flower bed, extended a patio border, or cleared new planting area. One forum user wanted “a zone that’ll be all drip line irrigation for a new backyard flower bed I just created that is approximately 4’ wide and about 30’ long.”

Overloaded zones causing low pressure. If an existing zone has too many heads, water pressure drops and coverage suffers. The Add-A-Zone product exists specifically to divide existing stations with a new valve to correct these pressure problems.

Separating plant types. Turf and shrubs on the same zone get inappropriate amounts of water. One homeowner explained that “the lawn needs a lot more water than the plants” but both were on the same zone. This is especially relevant when coordinating irrigation with tree health.

Converting manual watering areas. Tired of dragging hoses? A dedicated zone automates what you’ve been doing by hand.

When a New Zone Is NOT the Answer

This is a critical nuance that most guides skip entirely. Before committing to adding a zone, consider whether the real problem is distribution rather than capacity.

One irrigation contractor put it bluntly: “Will adding zones fix dry spots? Only if the issue is pressure, not distribution.” If your heads are spaced poorly or using the wrong nozzles, you can often fix coverage problems by swapping to higher-output nozzles on existing heads. That’s a 10-minute fix, not a weekend project. If you suspect this might be your situation, start by troubleshooting your sprinkler system to diagnose the real issue.

Assessment Terms: What to Check Before You Start

Every authoritative source agrees on this point: assessment before installation is non-negotiable. Skip this step and you risk building a zone your system can’t support.

GPM (Gallons Per Minute) and Flow Rate

GPM measures how much water your supply can deliver. This single number determines how many heads your new zone can support. Most residential systems can handle roughly 5 rotors or 10 spray heads per zone, but your actual number depends entirely on available GPM.

Here’s a concrete example: at 35 PSI, a Rain Bird 5000 Series rotor with a 3.0 nozzle uses 3.11 GPM. If your home’s water capacity is 10 GPM, you could place only 3 of those heads per zone.

The 5-gallon bucket test is the simplest way to measure your flow rate. Turn an outdoor faucet on all the way and time how long it takes to fill a 5-gallon bucket. Then divide 300 (5 gallons times 60 seconds) by the number of seconds it took. The result is your flow rate in GPM.

PSI (Pounds Per Square Inch) and Pressure Loss

PSI measures water pressure. You need enough pressure at each head for proper spray patterns. Static pressure is what you measure when no water is flowing. Dynamic pressure is what remains after friction losses through pipes, fittings, and valves.

The Oklahoma State Extension’s 5-4-3-2-1 rule of thumb estimates pressure loss through five main system components, totaling about 15 PSI of drop from the utility supply line to a sprinkler head. If your static pressure is 50 PSI, expect roughly 35 PSI at the heads. For more detail on pressure issues, see this guide on low water pressure causes and fixes.

Precipitation Rate / IPH (Inches Per Hour)

Precipitation rate measures how fast a set of heads applies water to an area. It’s expressed in inches per hour (IPH). This number matters enormously when deciding what type of heads to put on your new zone, and it’s the core reason you can never mix head types on one zone. More on that below.

Controller Capacity

Check whether your existing controller has an open station. Some controllers have a fixed number of stations, while many modern controllers are modular, meaning you can purchase additional station modules and plug them in. If your controller is completely maxed out and not expandable, you’ll need to upgrade it before adding a zone.

Wire Count: The Most Overlooked Limiting Factor

Practitioners on irrigation forums consistently flag this as the number one gotcha. One forum contributor warned, “Before doing anything else, I’d make sure you have the extra wire for an additional zone. Wire will often be the limiting factor.”

Pull off the controller cover and count the wires coming in. If there’s a spare conductor beyond what’s currently connected, you’re in good shape. If not, you’ll either need to run new wire from the controller to the valve location or explore alternative solutions like an Add-A-Zone device.

Installation Terms: Components You’ll Need

T-Fitting (Tee Fitting)

A T-fitting is a T-shaped pipe connector used to branch off the mainline. You’ll cut into the mainline pipe, install the tee, and route a new pipe from the tee to your new valve. This is how most zone additions tap into the existing water supply.

PVC Primer and Cement

PVC pipes are joined using a two-step chemical weld. Purple primer cleans and softens the pipe surface. The cement (often called glue, though it’s technically a solvent weld) fuses the pipe and fitting together permanently. Apply primer first, then cement, then push the fitting onto the pipe with a quarter-twist. You have about 15 seconds before it sets.

Trench Depth

Lateral lines and new pipe runs need to be buried. Standard trench depth for irrigation lines is 6 to 12 inches, but in West Texas, local conditions matter. Caliche (a hard calcium carbonate layer common in Lubbock-area soils) can make digging significantly harder than expected, and frost line considerations may push you toward the deeper end of that range.

Swing Pipe / Funny Pipe

Swing pipe is flexible tubing that connects rigid PVC lateral lines to individual sprinkler heads. It gives you some adjustability in head placement and absorbs minor shifts from settling or foot traffic without cracking.

Head-to-Head Coverage

Proper sprinkler design requires head-to-head spacing, meaning each head’s spray reaches the next head. This ensures uniform water distribution. When planning your new zone layout, understanding head types helps you select the right spacing and nozzle combination.

Why Spray and Drip Can Never Share a Zone

A 30-year irrigation veteran puts this in stark terms: “Never put different types of irrigation heads on the same irrigation zone to operate at the same time.” The reason is simple math. Rotor heads have precipitation rates between 0.10 and 0.25 IPH. Spray heads run between 1.35 and 2.15 IPH. That’s roughly a 10x difference.

Drip zones need to run much longer than spray zones to deliver sufficient water. Mixing the two will either flood part of the garden or leave plants parched. A drip zone requires its own dedicated valve and a pressure-regulating kit to function properly.

For a deeper comparison, see this breakdown of drip vs. spray irrigation.

Pressure Regulator

Drip irrigation operates at much lower pressure (typically 15 to 30 PSI) than spray or rotor zones (30 to 50+ PSI). A pressure regulator reduces incoming pressure to the correct range. Without one, drip emitters blow apart or deliver water unevenly.

Valve Box

A valve box is a plastic enclosure buried at ground level that protects your valve and makes it accessible for future maintenance. When adding a zone, you’ll either add a valve to an existing manifold box or install a new box at the new valve location.

Wiring and Controller Terms: Connecting Your New Zone

Getting water to the valve is half the job. Getting electricity to it is the other half.

Three Options for Powering a New Zone Valve

A detailed breakdown posted by a knowledgeable contributor on the Bogleheads forum outlines three approaches:

Option 1: Run new zone wire from the controller. If your controller has an open station and your wire bundle has a spare conductor, simply connect the spare wire to the new valve’s solenoid and to the open station on the controller. This is the cleanest solution.

Option 2: Use an Add-A-Zone device. This device lets you independently control two zone valves with only one pair of field wires. It’s useful when you don’t have spare wire and don’t want to trench a new wire run. The Add-A-Zone plugs into your existing wiring and splits the signal.

Option 3: Install a battery-powered controller. Products like the Hunter NODE can be mounted near the new valve and operate independently. However, practitioners widely consider battery controllers less reliable than wired solutions. One forum expert noted they are “very rarely the preferred solution.” For more on irrigation wiring basics, that guide covers repair and troubleshooting in detail.

Smart Controller Integration

If you’re already running a Wi-Fi-enabled controller like the Hunter X2 with Hydrawise, adding a zone becomes simpler from a programming standpoint. Modular controllers let you snap in additional station modules without replacing the entire unit. Once the new valve is wired, you configure the new zone through the app, including weather-based scheduling, cycle-and-soak settings, and remote monitoring. This is a significant advantage over older mechanical timers that may need full replacement.

Adding a Drip Zone: The Most Common Scenario

Forum threads consistently show that adding a dedicated drip zone for garden beds is the single most common reason homeowners look into how to add a new zone to an existing irrigation system.

One experienced DIYer explained the process: “It needed a dedicated zone on the controller, and a drip-specific zone valve box. This allowed for a separate watering schedule and appropriate water pressure going to the drip lines.”

The good news is that drip zone additions are among the simplest to install. Another forum member noted, “That would be super easy. The only digging would be to install the valve in the mainline and then running the pipe from the valve outlet to the bed. The drip line is done above ground. You’d only have to pull the mulch back to cover the drip line.”

A drip zone requires three things that make it different from a standard spray zone: a dedicated valve, a pressure regulator (to step down from mainline pressure), and a filter to prevent emitter clogging. For guidance on the water supply side, see this drip irrigation water source guide.

What to Expect: Cost, Complexity, and the DIY Question

Cost Ranges

Adding zones to an irrigation system for better water distribution typically costs between $500 and $1,000 per zone, with individual zones priced from $500 to $1,500 depending on head count, pipe length, and distance from the water source. A bare-bones drip zone tapping into existing infrastructure can run as low as $300 per zone. Labor rates for irrigation work generally fall between $50 and $100 per hour.

DIY Feasibility

Can you do this yourself? Probably, if you’re comfortable with the physical work. One forum contributor confirmed it’s “definitely a DIY job” but cautioned that “you have to be comfortable with trenching, including digging and cutting up roots that might be in the way.”

Others were more measured. Another homeowner wrote, “Adding zones will be very hard. Basically there is an electronically controlled valve for each zone. To add a zone, you need to add a valve and get electric to it. And you need to run a water supply pipe from somewhere to the valve. So that’s a lot of work.”

This Old House noted that “adding a new zone may require a licensed professional,” highlighting that in some states, irrigation work requires specific licensing.

A professional contractor’s observation is worth keeping in mind: “Many DIY irrigation systems are not a final solution. They’re a first attempt.”

Backflow Preventer Implications

This is a gap that almost no online guide addresses. Adding a zone changes your system’s total flow demand. If the additional flow exceeds what your backflow preventer was sized for, the device may not function correctly, and it could fail a city inspection. In many municipalities, including Lubbock, backflow devices must be tested annually. Adding zones may trigger the need for re-evaluation and re-testing to stay code-compliant.

Regional Considerations for West Texas

One irrigation professional emphasized a point that generic guides miss entirely: “Irrigation systems are very, very different regionally; and yard sizes are also very different. Doing this in Nebraska is very different from doing this in Arizona.”

In the Lubbock and West Texas area, specific factors affect how you add a zone to an existing irrigation system:

• Hard water can clog drip emitters faster, making filtration on drip zones even more important

• High summer evapotranspiration means zones need longer run times, which affects scheduling

• Sandy-to-caliche soils create trenching challenges (sandy topsoil digs easily, but hitting a caliche layer feels like hitting concrete)

• Municipal water pressure variability means your flow rate test should be done during peak usage hours to get a realistic number

After Installation: Protecting Your Investment

Testing the New Zone

Run the new zone manually through the controller immediately after installation. Walk the entire zone and check for leaks at every connection point, proper head pop-up, spray pattern coverage, and pressure at the farthest head. Adjust nozzles and arc settings before backfilling any open trenches.

Seasonal Programming Adjustments

Your new zone won’t need the same runtime as existing zones. Drip zones typically run longer but less frequently than spray zones. Rotor zones fall somewhere in between. Program the new zone based on its head type and the plants it serves, not by copying settings from other zones.

Full System Assessment

Adding a zone is a good trigger to assess the entire system. Run every existing zone and check for issues that may have developed since the last inspection. Pressure changes from the new zone can reveal weaknesses elsewhere, like marginal heads that were barely performing before the additional demand.

For ongoing protection, a sprinkler system maintenance plan that includes seasonal checkups catches small problems before they become expensive ones, especially after modifying the system.

If you’re in Lubbock or the surrounding West Texas area and want help adding a zone (or want a professional to evaluate whether a new zone is actually what your system needs), M&M’s licensed irrigators have been designing and servicing irrigation systems locally since 1987.

Frequently Asked Questions

How many sprinkler heads can I put on one zone?

It depends on your available GPM and the heads you’re using. As a rough guide, most residential systems support about 5 rotors or 10 spray heads per zone. Calculate it precisely by dividing your available GPM by each head’s GPM requirement at your operating pressure.

Can I add a zone without running new wire?

Yes. An Add-A-Zone device lets you control two valves from a single pair of wires, which eliminates the need for a new wire run. Battery-powered controllers like the Hunter NODE are another option, though they’re generally considered less reliable than wired connections.

Can I put drip emitters and spray heads on the same zone?

No. Spray heads apply water at roughly 1.5 to 2.0 inches per hour, while drip systems apply water far more slowly. Mixing them on one zone will either overwater the drip area or underwater the spray area. Drip always needs its own dedicated valve and a pressure regulator.

How deep should I bury the new irrigation pipe?

Standard depth is 6 to 12 inches. In West Texas, aim for the deeper end of that range to protect against occasional hard freezes. If you hit caliche while trenching, a trenching bar or power trencher will save you significant effort over a standard shovel.

Do I need a permit to add a zone to my sprinkler system?

Requirements vary by municipality. In many Texas cities, modifications to an existing irrigation system that involve adding valves or tapping into the mainline may require a licensed irrigator. Check with your local building department or water utility before starting work.

Will adding a zone affect my water pressure on other zones?

Not if only one zone runs at a time, which is how most residential controllers operate. The new zone draws water from the same supply, but since zones run sequentially, each zone gets full pressure during its run time. Problems arise only if your mainline or meter is undersized for the total system, or if you try to run zones simultaneously.

How long does it take to add a zone?

For a straightforward drip zone addition where you’re tapping into an accessible mainline and have spare wire and controller capacity, a skilled DIYer can finish in a day. A spray zone with multiple heads, longer pipe runs, and trenching through difficult soil could take a full weekend. Professional crews typically complete the job in 2 to 4 hours.

Should I add a zone myself or hire a professional?

If you’re comfortable with PVC solvent welding, trenching, and basic electrical wiring, a zone addition is within reach for a capable DIYer. Hire a professional if your system has no spare wire, your controller needs upgrading, you’re unsure about backflow compliance, or you’re dealing with difficult soil conditions. The cost of fixing a poorly installed zone often exceeds what a pro would have charged in the first place.
